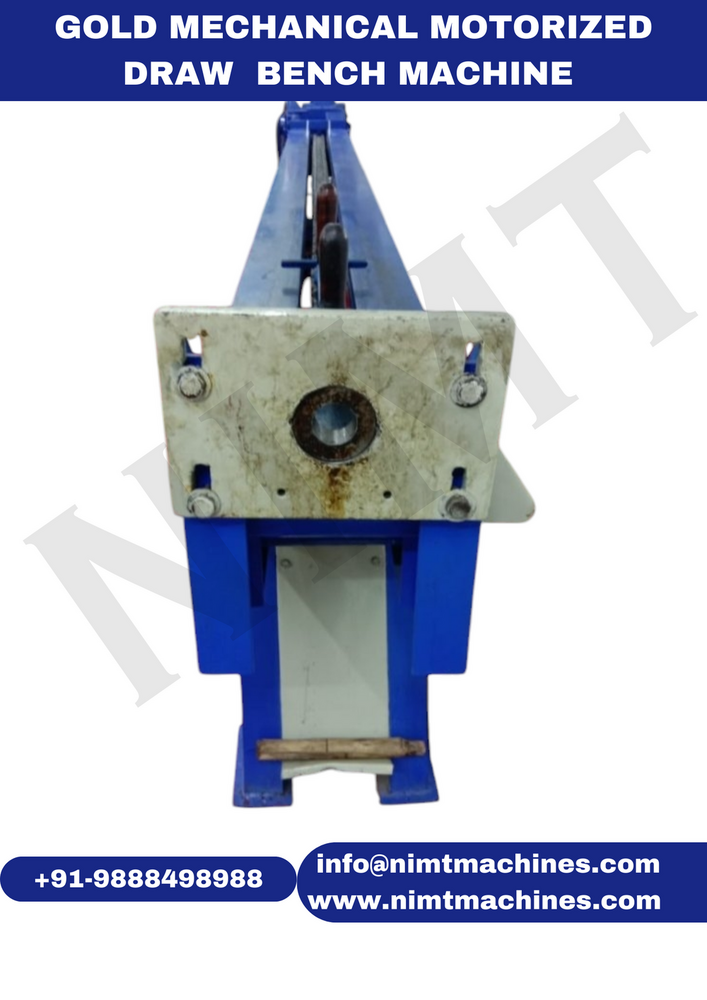

Send InquiryGold Mechanical Motorized Draw Bench Machine
Price 299000 INR/ Piece
MOQ : 1 Piece
Gold Mechanical Motorized Draw Bench Machine Specification
- Features
- Robust construction, smooth operation, high efficiency, low maintenance
- Motor Power
- As per model, up to 5 HP
- Frame Type
- Heavy Mild Steel Frame
- Cooling System
- Water Cooled
- Machine Type
- Motorized Draw Bench
- Control System
- Manual/Foot Switch Control
- Lubricating System
- Automatic Lubrication
- Operating Temperature
- 5C - 40C
- Model No
- GM-DB-2024
- Accuracy
- 0.2 mm
- Noise Level
- Below 75 dB
- Power Rating
- 3.7 kW
- Frequency
- 50/60 Hz
- Drive
- Gear drive
- Production Capacity
- 50-120 kg/hr
- Voltage
- 220-415 V
- Product Type
- Gold Mechanical Motorized Draw Bench Machine
- Technology
- Mechanical Motorized
- Power Source
- Electric Motor Driven
- Operating Type
- Automatic
- Power
- 2 HP to 7.5 HP
- Pressure
- Adjustable, up to 10 Tons
- Surface Treatment
- Powder Coated
- Dimension (L*W*H)
- Customized, approx. 2400 x 750 x 1100 mm
- Weight (kg)
- Approx. 850 kg
- Color
- Golden Yellow with Black Accents
- Usage & Applications
- Gold wire and bar drawing for jewelry making
- Bearings
- Heavy-duty precision bearings for smooth motion
- Input Material Diameter
- Up to 10 mm
- Installation
- Floor-mounted
- Finish Type
- Corrosion Resistant Painted Body
- Gearbox Type
- Helical Gear Box
- Output Wire Diameter
- 1 mm to 8 mm
- Max Draw Force
- 80 kN
- Draw Length
- Up to 3 meters
- Tool Compatibility
- Compatible with various draw dies and jaws
- Main Shaft Material
- High-grade Forged Steel
- Jaw Material
- Alloy Steel with Hardened Surface
- Safety Features
- Overload protection, emergency stop button
- Working Speed
- Variable, up to 40 m/min
