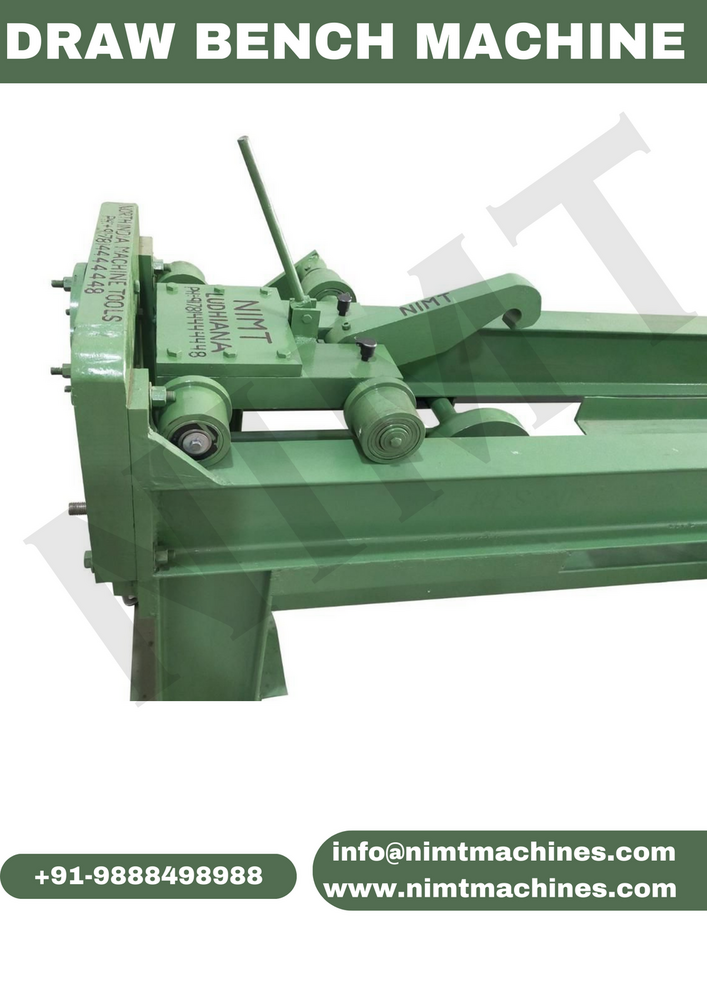

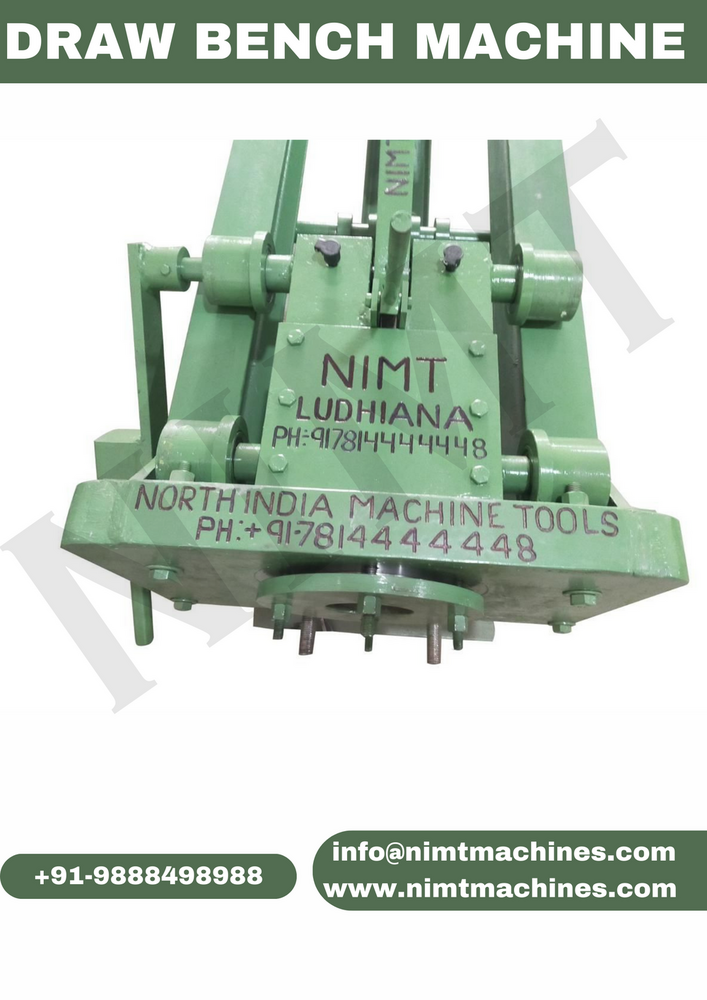

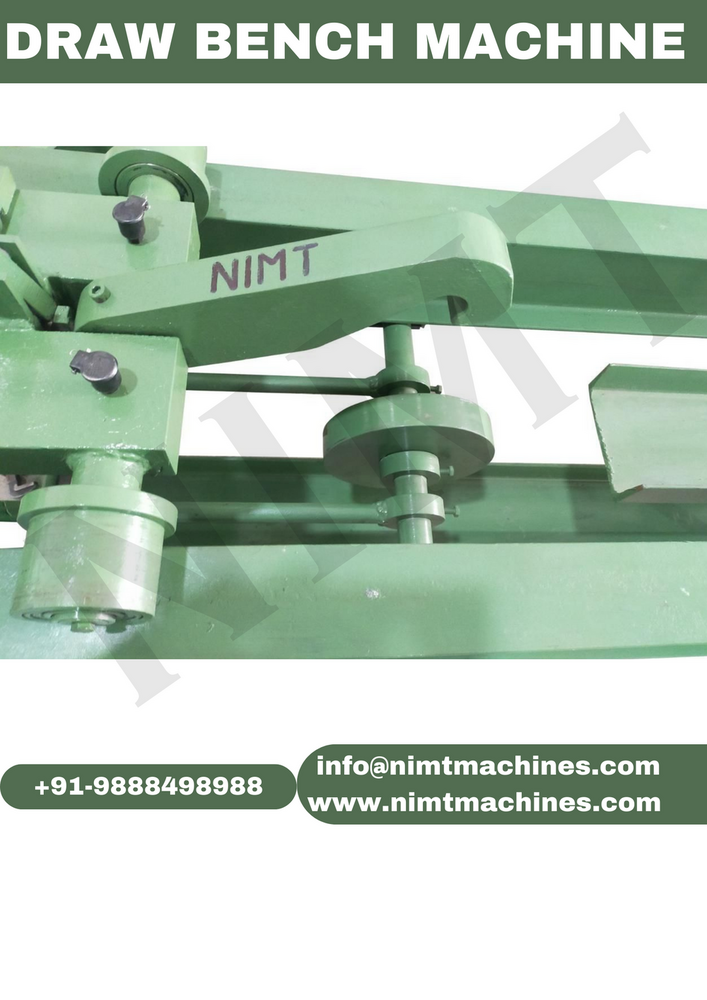

Draw Bench Machine In Ahmedabad

Name: Draw Bench Machine In Ahmedabad
Brand: NORTH INDIA MACHINE TOOLS
Price: 500000 INR
Availability: InStock

Price 500000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Draw Bench Machine In Ahmedabad Specification

Production Capacity
1500 kg/hr

Frequency
50 Hz

Operating Temperature
5C to 45C

Drive
Chain/Sprocket Drive System

Motor Power
7.5 Hp

Connectivity Options
Optional Digital Monitoring

Machine Type
Horizontal Draw Bench

Noise Level
<80 dB

Power Rating
3-Phase Power Supply

Features
Robust steel frame, high efficiency, low maintenance, precise drawing, operator safety mechanisms

Cooling System
Integrated Water Cooling

Voltage
415 V

Lubricating System
Automatic Centralized Lubrication

Model No
DBM-1500

Accuracy
0.05 mm

Frame Type
Welded Steel Frame

Control System
PLC or Push Button Control

Product Type
Draw Bench Machine

Technology
Advanced Mechanical Automation

Power Source
Electric

Operating Type
Semi-Automatic

Power
7.5 kW

Pressure
Hydraulic Pressure Driven

Surface Treatment
Painted / Coated Finish

Dimension (L*W*H)
4000 mm x 1200 mm x 1500 mm

Weight (kg)
1600 kg

Color
Blue & Silver/Grey

Usage & Applications
Metal tube and bar drawing, pipe manufacturing, and finishing processes

Die Changing System
Quick Change Mechanism

Minimum Draw Length
1000 mm

Scrap Handling
Integrated Collection Tray

Paint Coat
Corrosion Resistant Polyurethane

Max Draw Length
6000 mm

Chain Quality
Heat Treated Alloy Steel Chain

Installation Type
Floor Mounted

Grease Nipples
Provided at Critical Points

Operator Panel
Ergonomic Touch Interface (Optional)

Main Rollers
High strength EN-8 material

Safety Device
Emergency Stop & Overload Protection

Electrical Compliance
Meets IS/IEC Standards

Pulling Force
Up to 15 Ton

About Draw Bench Machine In Ahmedabad

Experience an elite and affordable solution with our Draw Bench Machine In Ahmedabad, offering a special rate for a truly outstanding, enlightened approach to metalworking. Designed with a quick-change die mechanism and constructed with a heat-treated alloy steel chain for enviable durability, this machine ensures precise and efficient tube and bar drawing. Safety is prioritized via emergency stop and overload protection, while a robust welded steel frame and corrosion-resistant coating deliver long-lasting performance. With advanced automation, ergonomic controls, and seamless PLC interface options, this elite draw bench guarantees high productivity and minimal maintenance, setting a new standard in industrial manufacturing.

Commercial Versatility and Practical Applications

The Draw Bench Machine in Ahmedabad stands out for its commercial excellence across diverse industries. It is perfectly suited for metal tube and bar drawing, pipe manufacturing, and processing through finishing operations. This equipment adapts easily to factory floors in automotive, construction, and fabrication sectors. Its surface application covers steel, alloy, and specialty metals, ensuring uniformity and flawless processing. The machine's well-engineered features support repetitive, high-load operations while delivering consistent, high-quality results for industrial use.

Export Markets, Certifications, and Delivery Assurance

Expanding its reach, the Draw Bench Machine in Ahmedabad is a preferred choice in international markets due to its reliability. Order completion is prompt, backed by certified compliance including adherence to IS/IEC standards. Manufacturers from India supply this product globally, ensuring competitive asking prices and flexible exchange terms tailored to client needs. Delivery time is minimized for both local and global orders, empowering buyers with timely commissioning and installation, contributing to greater operational efficiency.

FAQ's of Draw Bench Machine In Ahmedabad:

Q: How does the quick-change die mechanism benefit the operator?

A: The quick-change die mechanism allows operators to swiftly swap dies, reducing downtime and increasing productivity during different processing runs. This enhances flexibility and efficiency in tube and bar drawing applications.

Q: What safety features are included in this draw bench machine?

A: The machine is equipped with advanced safety devices, including an emergency stop and overload protection system. These features safeguard operators and equipment during operation, ensuring a secure work environment.

Q: When is the optimal time to use this draw bench machine?

A: This machine is ideal for use whenever precise profiling and drawing of metal tubes and bars are required, particularly in scenarios demanding high accuracy, repeat production, or quick turnaround on orders.

Q: Where can I install the draw bench machine in my facility?

A: The draw bench machine is floor-mounted and can be installed in metalworking factories, pipe manufacturing facilities, or fabrication workshops that require robust and space-efficient machinery.

Q: What is the process for handling scrap material generated during operation?

A: An integrated collection tray is provided to handle all scrap material conveniently, helping to maintain a clean workspace and promote efficient disposal or recycling practices.

Q: How does the automatic lubrication system improve machine performance?

A: The automatic centralized lubrication system ensures all critical moving parts remain well-oiled. This reduces maintenance needs, prolongs equipment lifespan, and ensures smooth, consistent operation.
