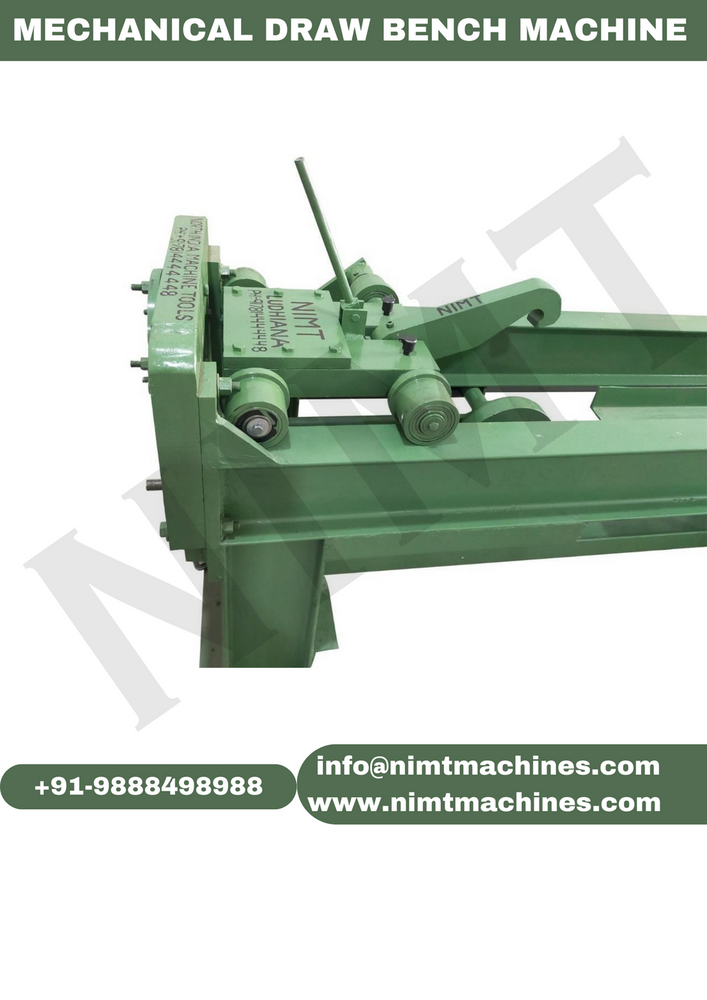

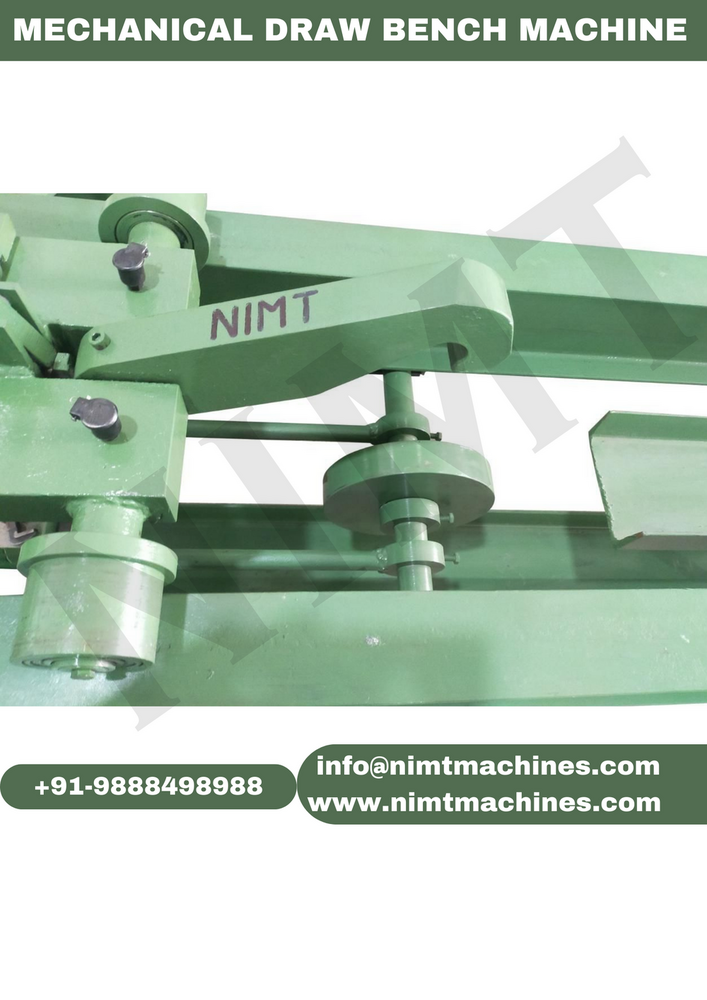

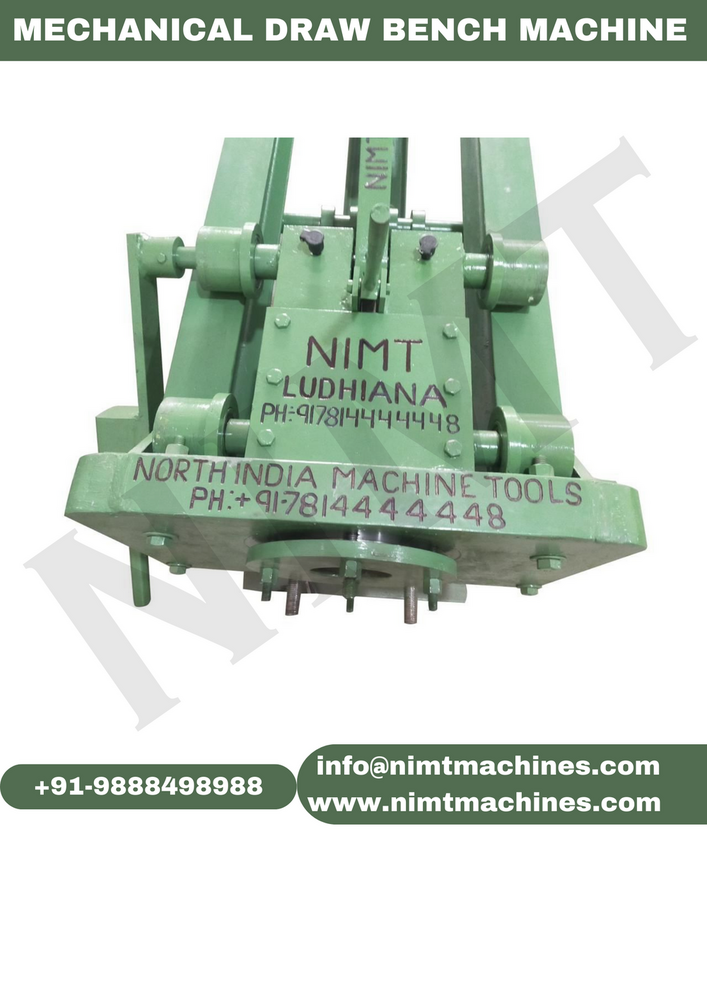

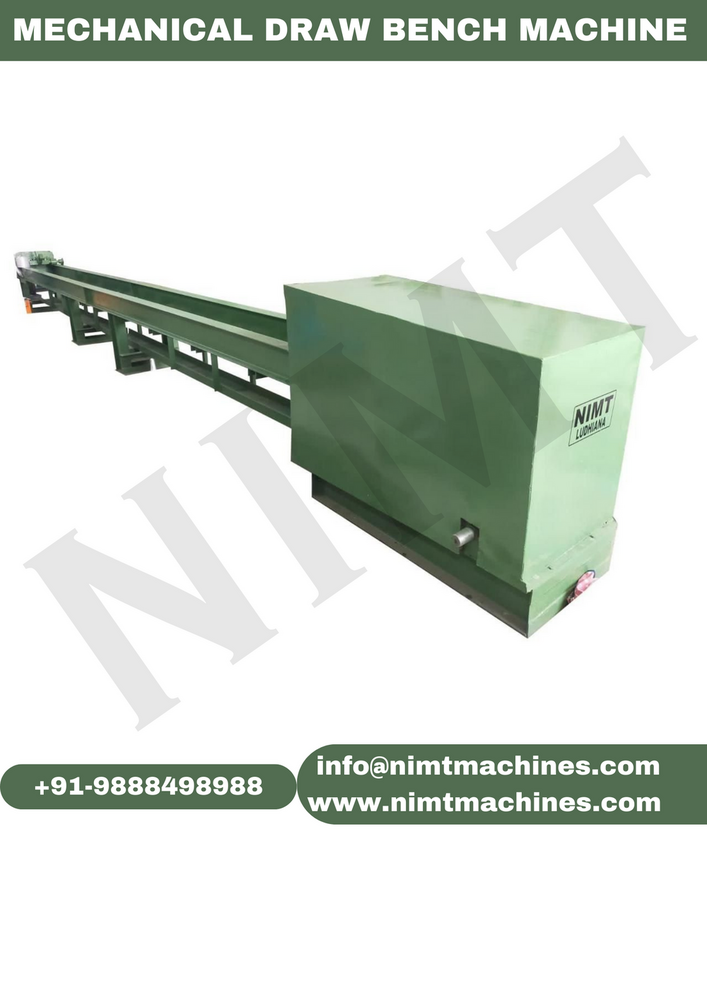

Mechanical Draw Bench Machine
Mechanical Draw Bench Machine
Mechanical Draw Bench Machine
Mechanical Draw Bench Machine
Mechanical Draw Bench Machine
Mechanical Draw Bench Machine
Mechanical Draw Bench Machine
Mechanical Draw Bench Machine

Mechanical Draw Bench Machine

Price 500000 INR/ Piece

MOQ : 1 Piece

Mechanical Draw Bench Machine Specification

  • Voltage
  • 415 V
  • Operating Temperature
  • 0C to 45C
  • Connectivity Options
  • Panel controls, optional digital display
  • Lubricating System
  • Automatic central lubrication
  • Drive
  • Gear Drive
  • Power Rating
  • 7.5 kW
  • Noise Level
  • Below 80 dB
  • Machine Type
  • Mechanical Wire Rod/Tubing Draw Bench
  • Cooling System
  • Water Circulation or Oil Cooling
  • Features
  • High structural strength, robust construction, simple operation, low maintenance, accuracy in drawing
  • Production Capacity
  • 60-100 meter/hour
  • Frequency
  • 50 Hz
  • Model No
  • MDB-6000
  • Motor Power
  • 7.5 kW Induction Motor
  • Control System
  • Manual/Push Button Control Panel
  • Accuracy
  • 0.05 mm
  • Frame Type
  • Heavy Duty Welded Frame
  • Plastic Processed
  • Not Applicable (for Metal Drawing)
  • Product Type
  • Mechanical Draw Bench Machine
  • Technology
  • Mechanical
  • Power Source
  • Electric
  • Operating Type
  • Semi-Automatic
  • Power
  • 7.5 kW
  • Pressure
  • Up to 150 Ton
  • Surface Treatment
  • Paint Coated
  • Dimension (L*W*H)
  • 6000 x 1200 x 1500 mm
  • Weight (kg)
  • Approx 3000 kg
  • Color
  • Blue-Grey
  • Usage & Applications
  • Used for drawing various metal rods, wires and tubes to precise sizes in industrial and manufacturing applications
  • Working Speed
  • Adjustable (10-50 meter/minute)
  • Material Compatibility
  • Mild Steel, Stainless Steel, Copper, Brass
  • Input Voltage Tolerance
  • 10% of Rated Voltage
  • Maintenance
  • Easy access for service
  • Die Holder
  • Interchangeable Die Block
  • Operator Safety
  • Emergency stop switch with safety interlocks
  • Installation
  • Foundation bolts required
  • Chain Type
  • Alloy Steel Chain
  • Drawing Capacity
  • Up to 80 mm diameter
  • Transportability
  • Base with lifting hooks
  • Finishing
  • Corrosion Resistant Paint
  • Max Draw Length
  • 6 meters
