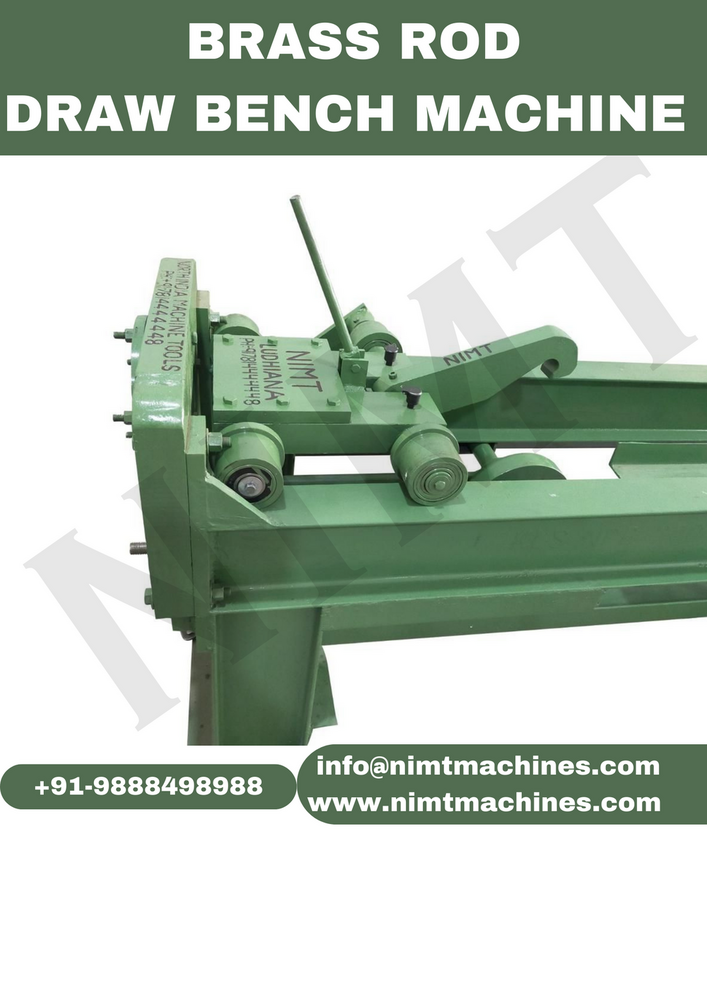

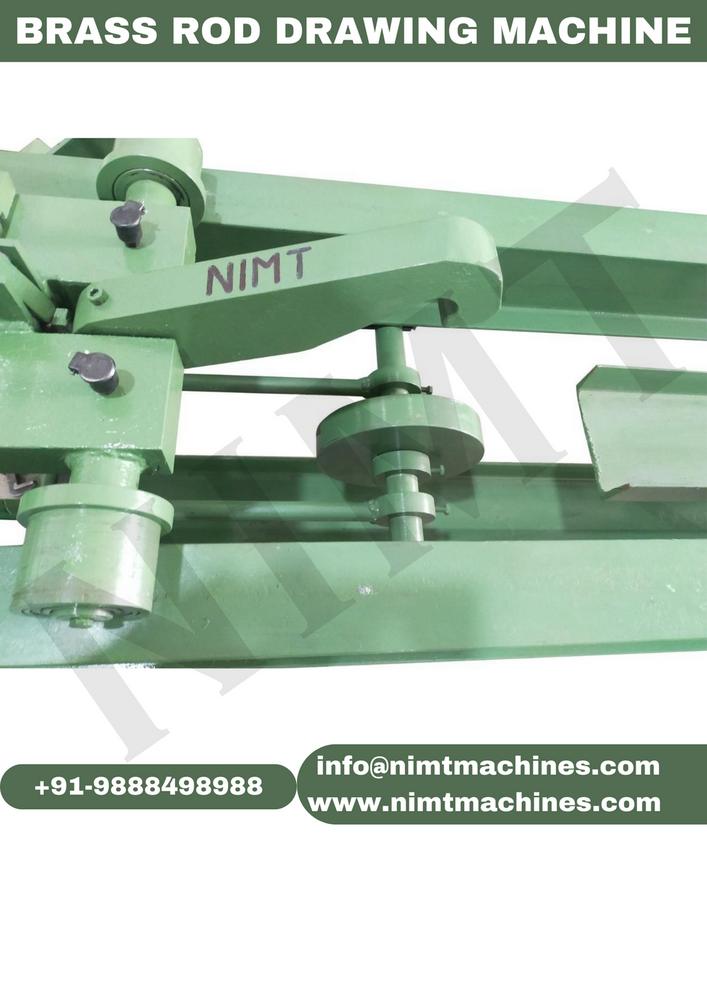

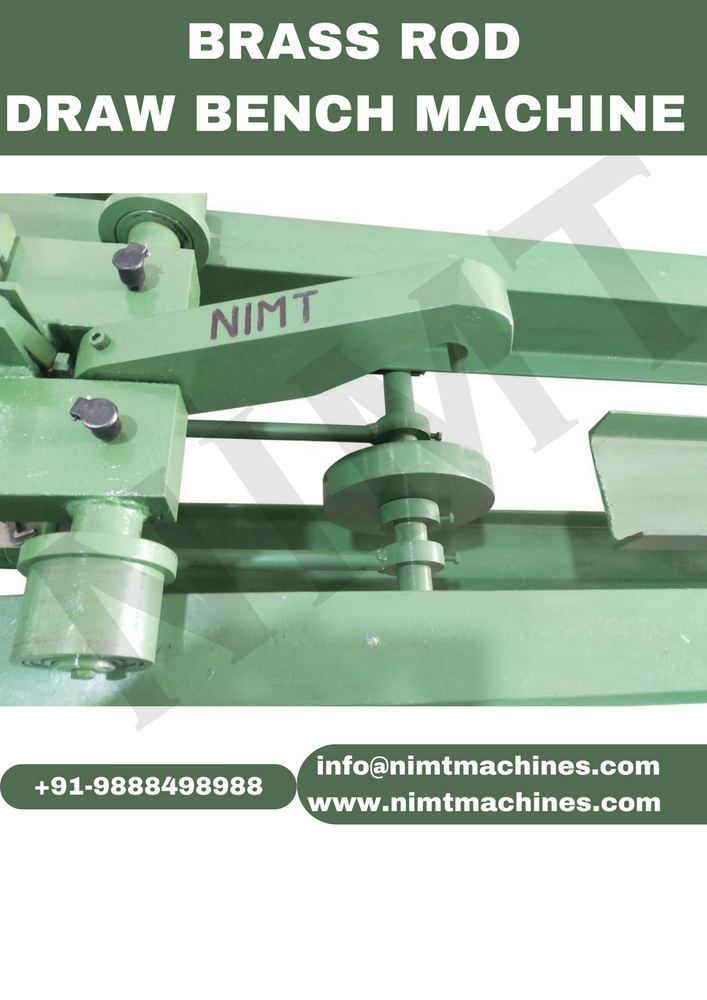

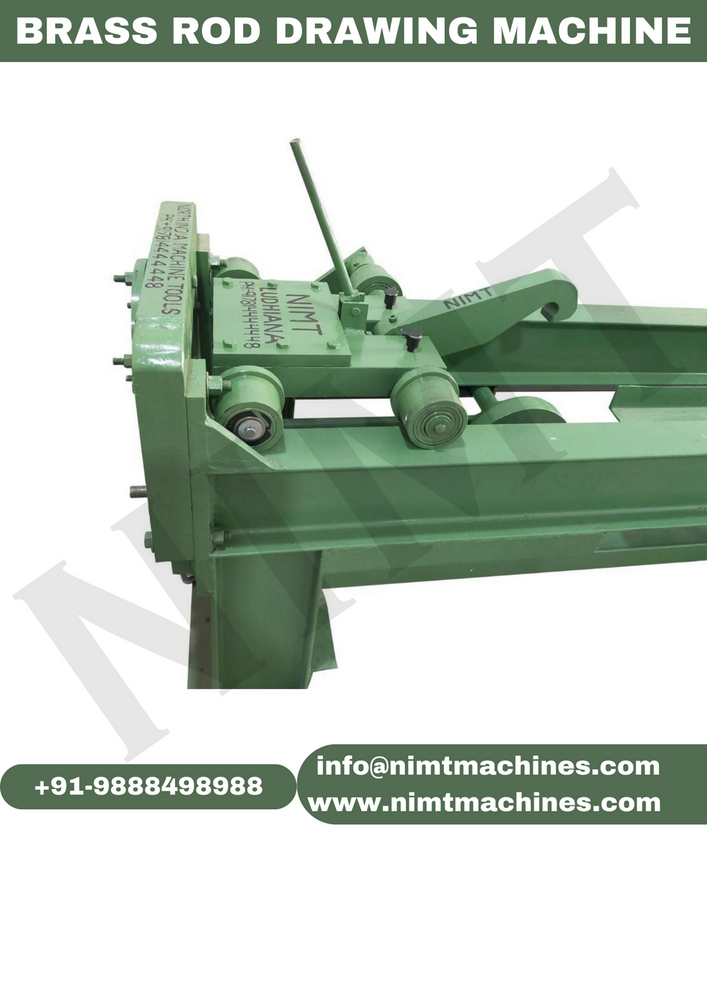

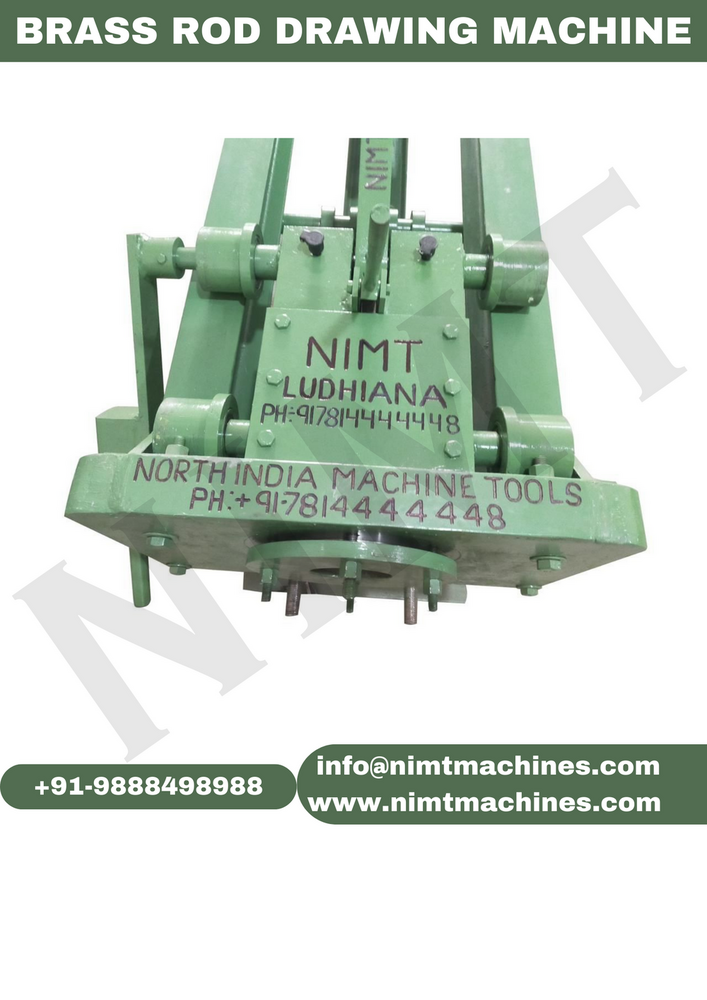

Brass Rods Drawing Machine

Name: Brass Rods Drawing Machine
Brand: NORTH INDIA MACHINE TOOLS
Price: 500000 INR
Availability: InStock

Price 500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Brass Rods Drawing Machine Specification

Production Capacity
1-2 tons/hr Ton/day

Power Rating
15-30 kW

Operating Temperature
5C to 45C Celsius (oC)

Connectivity Options
HMI / Touch screen interface

Frequency
50/60 Hz Hertz (HZ)

Cooling System
Integrated water cooling system

Noise Level
80 dB db

Frame Type
Rigid welded steel frame

Features
Heavy duty design, easy operation, low maintenance

Machine Type
Brass Rod Drawing

Voltage
380-440 V Volt (v)

Lubricating System
Centralized automatic lubrication

Drive
AC Motor Drive

Accuracy
0.05 mm tolerance mm

Model No
BRD-120

Motor Power
15 kW Watt (W)

Product Type
Other

Technology
Other

Power Source
Other

Operating Type
Semi Automatic

Power
15-30 kW (Depends on model) Watt (w)

Pressure
Adjustable, up to 120 tons kgf/cm2

Surface Treatment
Other

Dimension (L*W*H)
Approx. 4000x1200x1400 mm Inch (in)

Weight (kg)
Approx. 3000 kg Kilograms (kg)

Color
Industrial Blue

Usage & Applications
For drawing and sizing brass rods in industrial applications

Working Speed
Adjustable, up to 20 m/min

Max Drawing Force
Up to 120 kN

Input Rod Diameter
12 mm to 28 mm

Operator Panel
Digital Display with Touch Panel

Output Rod Diameter
8 mm to 22 mm

Safety Features
Emergency stop, protective covers

Pulling Capstan Diameter
600 mm

Foundation
Required, as per machine size

Oil Circulation System
Automatic

Optional Attachments
Online straightening / cutting unit

Roller Material
Alloy Steel, Hardened & Ground

Ambient Humidity
Less than 85% (non-condensing)

Number of Dies Stands
1-2

Brass Rods Drawing Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
30 Days

About Brass Rods Drawing Machine

Experience the spectacular performance of our Brass Rods Drawing Machine, now available at a reduced price for an exclusive period. Highlighted by a towering pulling capstan (600 mm), this ravishing industrial marvel adeptly transforms brass input rods (12-28 mm) to precision output rods (8-22 mm) with adjustable working speeds up to 20 m/min. Built with hardened alloy steel rollers and fortified safety features, it ensures reliable, low-maintenance operation while attaining a maximum drawing force of 120 kN. The digital touch panel enables streamlined control, while the anti-corrosive paint finish and robust steel frame promise enduring use. Ideal for manufacturers across India seeking accuracy, efficiency, and a premium edge.

Directions of Use, Advantages & Applications

For optimal performance, position the Brass Rods Drawing Machine on a solid foundation and connect all utilities as directed. The machine offers outstanding precision, efficiently converting raw brass rods into desired dimensions with 0.05 mm accuracy. It suits various industrial applications, including electrical component and hardware manufacturing. An optional online straightening/cutting attachment further enhances its utility, making it a versatile choice for industries seeking consistent, high-volume output.

Main Domestic & Export Markets, Delivery & Transport Services

Our Brass Rods Drawing Machine is in high demand across all major domestic industrial hubs in India, served by reliable transport services ensuring prompt and secure deliveries. For international buyers, we arrange swift transportation, carefully managing charge calculations and customs protocols. Delivery times depend on order size and destination, but prompt dispatch is always prioritized. We cater to diverse markets, reflecting our commitment to quality and dependable after-sales support worldwide.

FAQ's of Brass Rods Drawing Machine:

Q: How does the adjustable working speed benefit the production process?

A: The adjustable working speed, up to 20 m/min, allows operators to optimize output based on the specific requirements of each brass rod size and quality, balancing high production rates with accuracy.

Q: What safety features are included to ensure operator security?

A: The machine is equipped with robust safety measures, such as emergency stop buttons and protective covers, ensuring a secure working environment for operators during operation and maintenance.

Q: When is foundation work required for installation?

A: A proper foundation is required for installation to ensure the machine's stability and efficient operation, as specified in the machine's dimensional requirements, before commissioning.

Q: Where can the Brass Rods Drawing Machine be utilized?

A: It is suitable for any industrial setting that requires precise sizing and drawing of brass rods, including electrical equipment, hardware, and automotive component manufacturing.

Q: What is the process of changing input and output rod diameters?

A: Operators can easily adjust the dies and configure the control panel to accommodate different input (12-28 mm) and output (8-22 mm) diameters, enabling swift transitions for various production needs.

Q: How does the automatic oil circulation system enhance machine longevity?

A: The automatic oil circulation and centralized lubrication systems ensure all moving parts remain well-lubricated, reducing wear, preventing overheating, and prolonging machine life for continuous operation.
