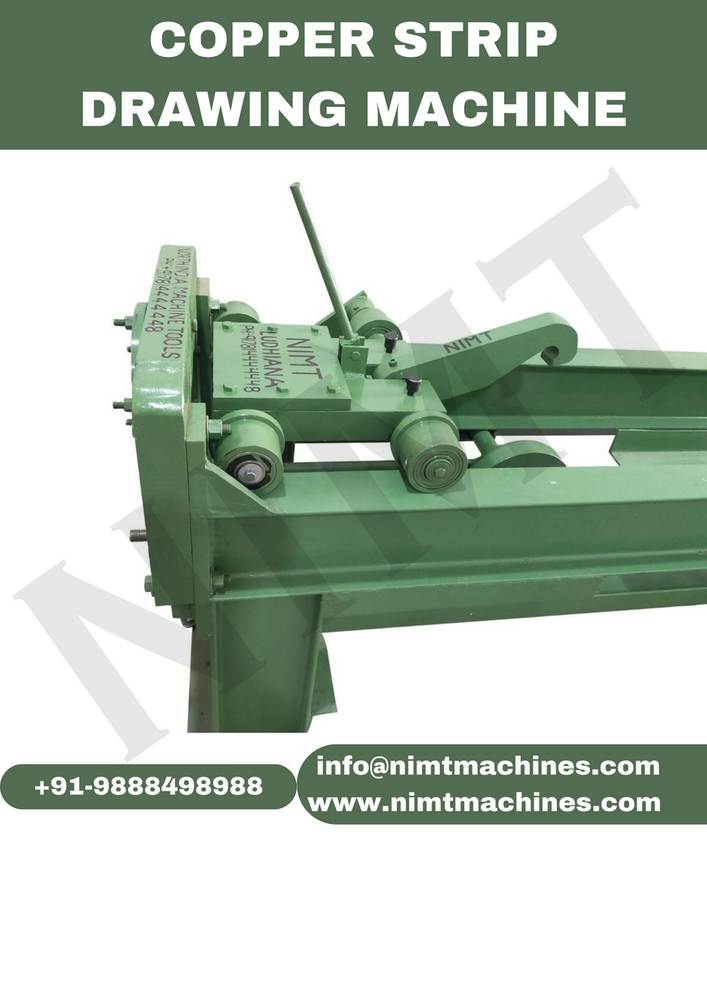

Copper Strip Drawing Machine

Name: Copper Strip Drawing Machine
Brand: NORTH INDIA MACHINE TOOLS
Price: 500000 INR
Availability: InStock

Price 500000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Copper Strip Drawing Machine Specification

Power Rating
15 kW

Connectivity Options
Can be integrated with central monitoring

Operating Temperature
5C to 45C

Model No
CSDM-350

Frequency
50 Hz

Frame Type
Heavy Duty Welded Frame

Features
Robust construction, easy maintenance, energy efficient

Accuracy
0.02 mm

Lubricating System
Automatic Lubrication

Voltage
415 V

Motor Power
15 kW

Noise Level
<75 dB

Drive
AC Drive

Control System
PLC Controlled

Machine Type
Automatic Strip Drawing

Cooling System
Water Circulation

Production Capacity
Up to 800 kg/hr

Product Type
Copper Strip Drawing Machine

Technology
Cold drawing

Power Source
Electric

Operating Type
Automatic

Power
15 kW

Pressure
Adjustable as per strip thickness and width

Surface Treatment
Paint Coated

Dimension (L*W*H)
3500 x 1450 x 1800 mm

Weight (kg)
~2200 kg

Color
Blue & White

Usage & Applications
Suitable for drawing and sizing copper strips for cable manufacturing and electrical industries

Installation Service
Available

Strip Thickness Range
0.2 mm to 5 mm

Working Speed
Variable, up to 60 m/min

Energy Efficiency
High Efficiency Motor and Inverter

Strip Width Range
10 mm to 100 mm

Number of Drawing Stands
Single or Multi-stand (customizable)

Display Type
Digital HMI Display

Roller Material
Alloy Steel, Hardened

Safety Features
Emergency Stop, Overload Protection

Die Type
Tungsten Carbide & Diamond Coated

Consumables Usage
Low

About Copper Strip Drawing Machine

Discover the impeccable performance of our Copper Strip Drawing Machine-engineered for precision and reliability. As a best-seller across India, this imposing machine accommodates strip widths from 10 mm to 100 mm and thicknesses from 0.2 mm to 5 mm, delivering up to 800 kg/hr. Benefit from a variable working speed (up to 60 m/min), a customizable single or multi-stand setup, and incomparable efficiency with high-quality die options. Special features include a digital HMI display, safety systems, low consumables use, and robust alloy steel construction. Try now for a superior strip drawing experience.

Commercial Excellence & Versatile Applications

The Copper Strip Drawing Machine is ideal for large-scale commercial usage, especially in cable manufacturing and electrical industries. With its robust build and alloy steel rollers, it delivers accurately sized copper strips for critical applications. Its unmatched efficiency and adjustable working parameters ensure versatility across strip sizes and production requirements, supporting diverse industrial operations. This machine is characterized by high energy efficiency and reliability, making it essential for businesses seeking precision and productivity in copper processing.

Certifications, Packaging and Delivery Assurance

Each Copper Strip Drawing Machine comes with quality certifications and strict compliance to regulatory standards. Our packaging ensures that the unit arrives in impeccable condition, with secure crate and weatherproof sealing. Flexible sample policies are available on request. Sale price is customized according to your configuration and operational requirements. Timely arrival and installation services are guaranteed-all backed by responsive after-sales support and comprehensive documentation for easy setup and operation.

FAQ's of Copper Strip Drawing Machine:

Q: How does the machine achieve high accuracy in copper strip drawing?

A: The Copper Strip Drawing Machine uses advanced PLC control, digital HMI display, and premium tungsten carbide or diamond-coated dies to achieve exceptional accuracy (up to 0.02 mm) in strip sizing.

Q: What safety features are included in the Copper Strip Drawing Machine?

A: This machine is equipped with essential safety features such as an emergency stop button and overload protection, ensuring operator safety and reliable operation in all working environments.

Q: Where can the Copper Strip Drawing Machine be installed?

A: It is suitable for installation in industrial settings, particularly cable manufacturing factories and electrical component production units. Our installation service ensures hassle-free commissioning anywhere in India.

Q: What is the typical process of maintaining this machine?

A: Thanks to its automatic lubrication system and robust construction, maintenance is easy and infrequent. Simple periodic checks for the cooling and drive systems help sustain peak performance.

Q: When should you use a multi-stand configuration?

A: A multi-stand arrangement is recommended when higher production capacity or multiple strip sizes are required simultaneously, offering greater flexibility and throughput during operations.
