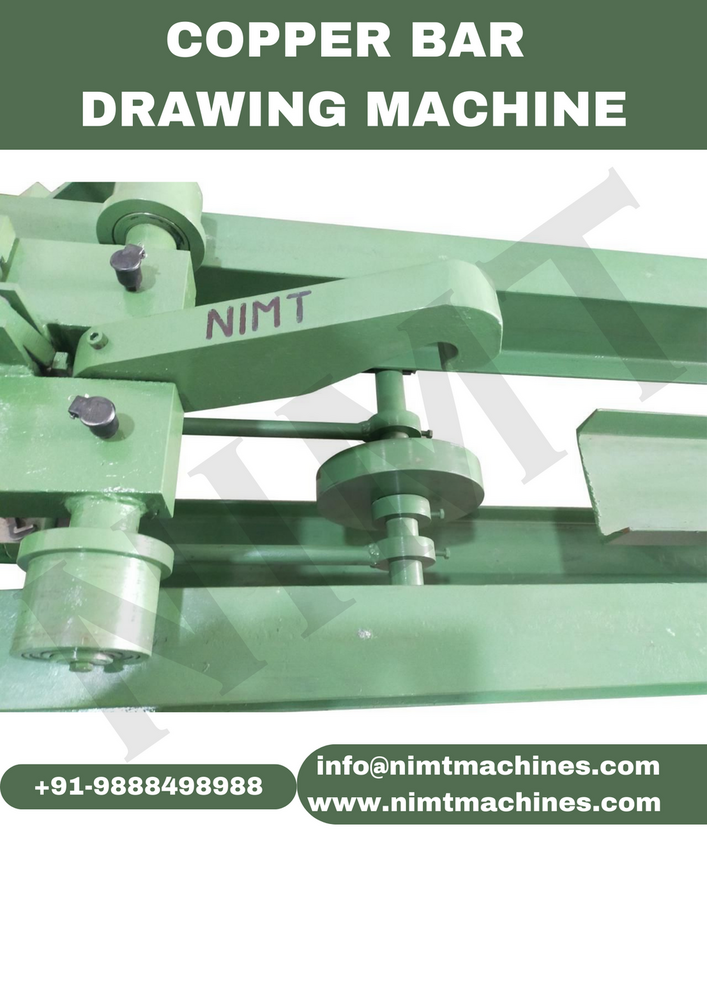

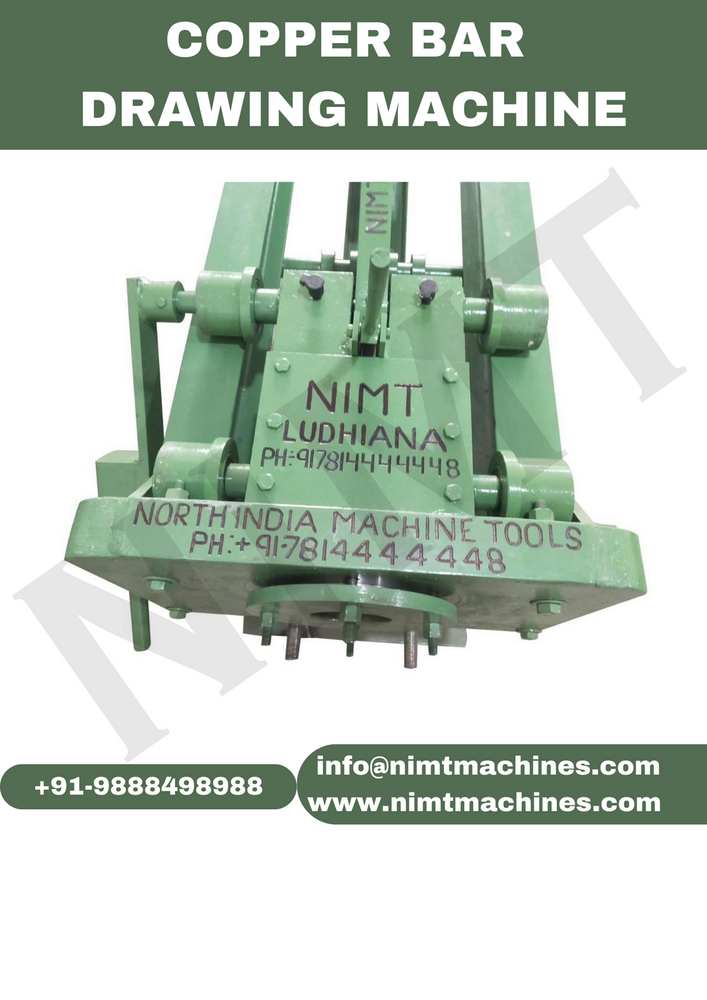

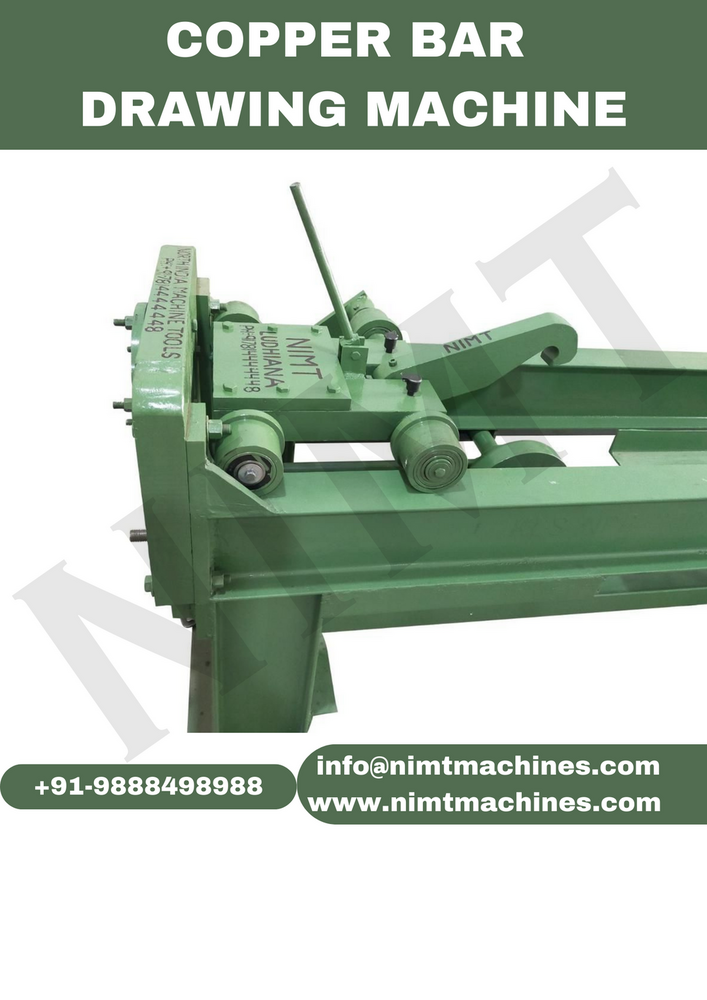

Send InquiryCopper Rod Drawing Machine
Price 500000 INR/ Piece
MOQ : 1 Piece
Copper Rod Drawing Machine Specification
- Features
- High efficiency, Durable construction, Consistent drawing quality, Low maintenance
- Connectivity Options
- Remote Monitoring (Optional)
- Control System
- PLC Controlled
- Voltage
- 380-440V AC
- Production Capacity
- 4.5-5 tons per hour
- Lubricating System
- Automatic Lubrication
- Model No
- CRDM-150
- Motor Power
- 45 kW
- Frequency
- 50 Hz
- Accuracy
- 0.05 mm
- Power Rating
- 45 kW
- Machine Type
- Copper Rod Drawing
- Cooling System
- Water Circulation
- Operating Temperature
- Ambient to 45C
- Frame Type
- Steel Welded Frame
- Drive
- AC Frequency Drive
- Noise Level
- Less than 80 dB
- Product Type
- Copper Rod Drawing Machine
- Technology
- Wire Drawing Technology
- Power Source
- Electric
- Operating Type
- Automatic
- Power
- 45 kW
- Pressure
- Adjustable as per process requirements
- Surface Treatment
- Paint Coated
- Dimension (L*W*H)
- Approx. 15000 x 2000 x 1800 mm
- Weight (kg)
- 9300 kg
- Color
- Blue & Silver
- Usage & Applications
- Used for drawing and reducing copper rod diameter for wire manufacturing
- Rod Input Diameter
- 8.0 mm
- Shipping Condition
- Assembled or CKD (Complete Knocked Down)
- Energy Consumption
- Low Power Consumption Design
- Ambient Working Environment
- Dustproof Covered Area
- Take-up Type
- Coiler or Drum Pack
- Number of Drawing Blocks
- 13
- Maintenance Access
- Accessible Service Doors
- Rod Output Diameter
- 1.2 - 3.0 mm
- Operator Interface
- Touch Screen HMI
- Safety Features
- Emergency stop, Overload protection
- Installation Type
- Floor Mounted
- Drawing Dies Material
- Tungsten Carbide
- Electrical Protection Class
- IP54
- Drive Method
- Gearbox Coupled AC Motor
