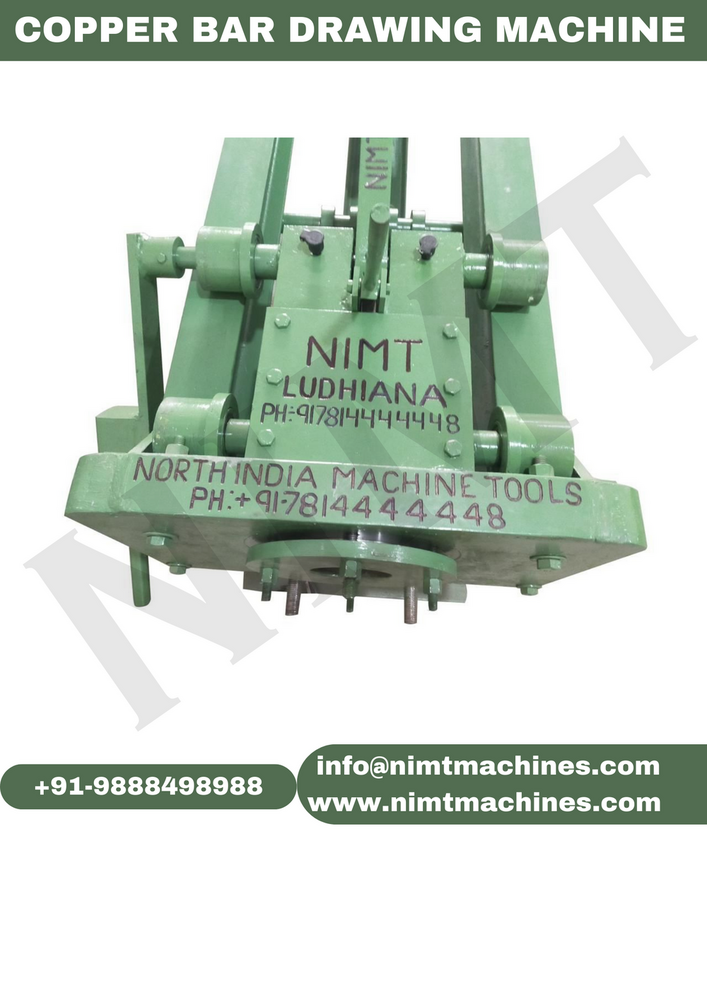

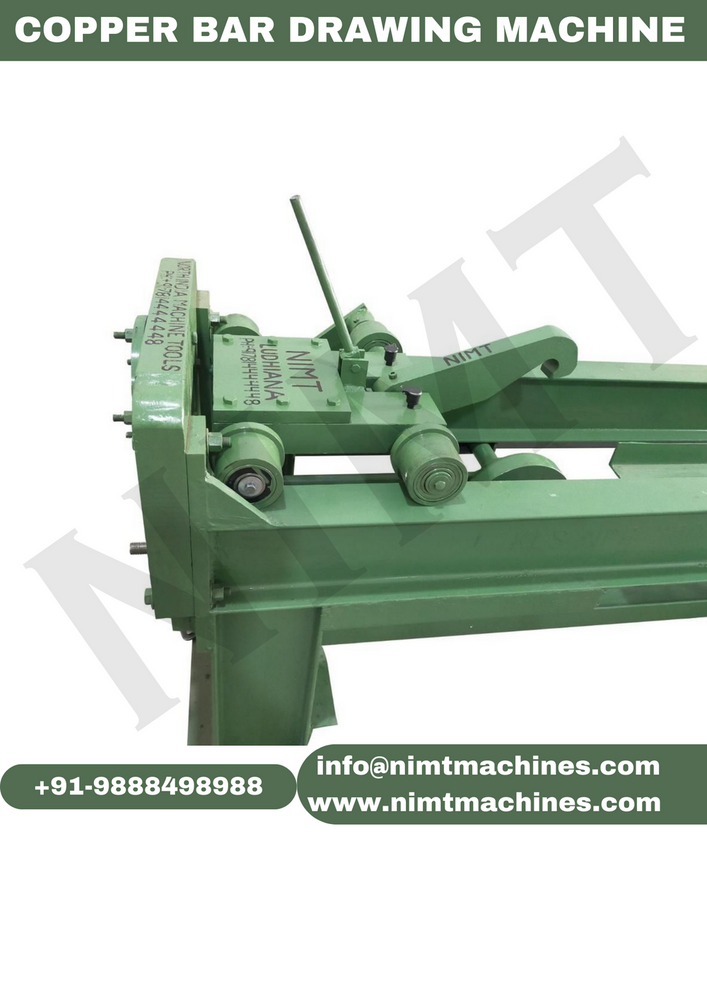

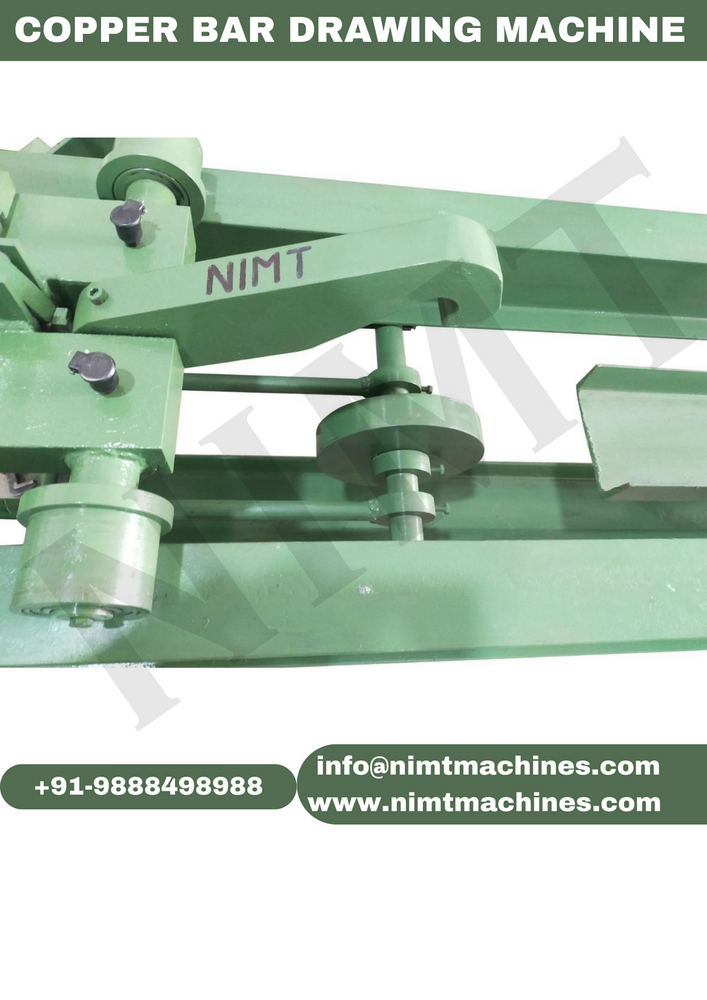

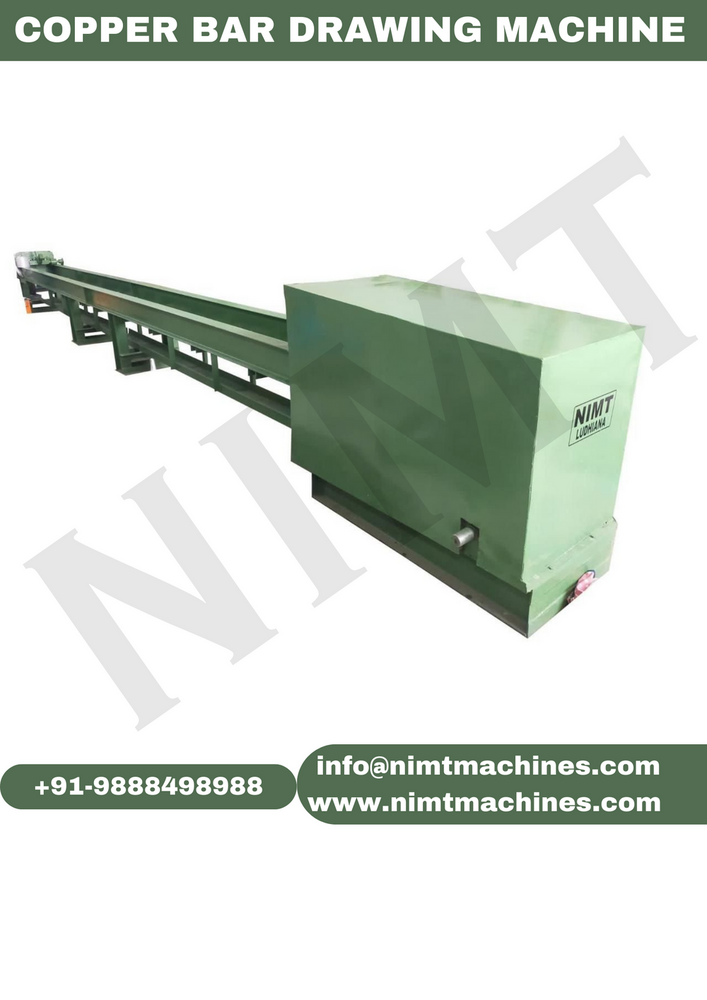

Copper Bar Drawing Machine

Name: Copper Bar Drawing Machine
Brand: NORTH INDIA MACHINE TOOLS
Price: 500000 INR
Availability: InStock

Price 500000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Copper Bar Drawing Machine Specification

Model No
CBDM-2200

Machine Type
Bar Drawing

Lubricating System
Automatic Oil Lubrication

Noise Level
80 dB

Frame Type
Welded Steel

Production Capacity
Up to 2 Tons/Hour

Voltage
380 V

Drive
AC Frequency Drive

Connectivity Options
HMI/SCADA Interface

Features
High precision, durable construction, low maintenance

Operating Temperature
5C - 45C

Accuracy
0.03 mm

Power Rating
22 kW

Motor Power
22 kW

Frequency
50 Hz

Cooling System
Water Cooling

Control System
PLC Controlled

Product Type
Copper Bar Drawing Machine

Technology
Cold Drawing

Power Source
Electric

Operating Type
Automatic

Power
22 kW

Pressure
Adjustable up to 25 Ton

Surface Treatment
Paint Coated

Dimension (L*W*H)
6200 x 1500 x 1600 mm

Weight (kg)
4000 kg

Color
Industrial Blue/Grey

Usage & Applications
Drawing and resizing copper bars for industrial use

Bar Diameter Range
10-50 mm

Foundation Requirement
Rigid Concrete Base

Die Type
Tungsten Carbide

Input Bar Length
Max 6 m

Output Collection
Automatic Stacker

Material Handled
Copper, Brass

Ambient Humidity
80%

Main Shaft Rotational Speed
80-180 rpm

Safety Features
Emergency Stop, Overload Protection

Operator Panel
Touchscreen Interface

About Copper Bar Drawing Machine

The CBDM-2200 Copper Bar Drawing Machine represents a best-seller in value, offering wondrous precision and efficiency for copper and brass bar processing. Engineered for exceptional performance, it handles bars from 10 mm up to 50 mm in diameter with a transcendent accuracy of 0.03 mm. The robust construction, paint-coated finish, and industrial blue/grey color ensure durability and freshness in any working environment. Its sensational automatic features include a PLC touchscreen, automatic oil lubrication, and a water-cooling system. Designed for high safety, the machine boasts emergency stop and overload protection, guaranteeing reliable and secure operations for modern manufacturers and suppliers across India.

Versatile Application & Industrial Use

The Copper Bar Drawing Machine is engineered for drawing and resizing copper as well as brass bars, making it crucial for manufacturers, suppliers, and industrial plants. It excels on heavy-duty floors, with its welded steel frame and concrete foundation requirement adding stability for precision bar production. Ideal for high-capacity outputs (up to 2 tons/hour), it delivers remarkable performance for automotive, electrical, and construction applications, where surface uniformity and dimensional accuracy are paramount.

Efficient Dispatch & Global Delivery Network

Our Copper Bar Drawing Machine is shipped from major Indian FOB ports, streamlining international goods transport and ensuring secure delivery. Backed by a strong export network, it is dispatched efficiently to main markets such as Asia, Africa, and the Middle East, as well as prominent domestic industrial zones in India. Advanced logistics solutions prioritize prompt, safe transportation and client satisfaction for every unit delivered to your site.

FAQ's of Copper Bar Drawing Machine:

Q: How does the Copper Bar Drawing Machine ensure high precision during operation?

A: The machine utilizes a PLC-controlled system and a tungsten carbide die, maintaining dimensional accuracy up to 0.03 mm. Automatic oil lubrication and a water-cooling system further support consistent, high-precision output.

Q: What types of materials can be processed using the machine?

A: This machine is designed to draw and resize both copper and brass bars with diameters ranging from 10 mm to 50 mm, making it suitable for various industrial applications.

Q: Where is the Copper Bar Drawing Machine typically installed?

A: It is best installed on a rigid concrete base within industrial settings, such as manufacturing plants, to guarantee stability and optimal performance.

Q: What safety features are integrated into the machine?

A: The machine is equipped with emergency stop functions, overload protection, and a user-friendly touchscreen interface, ensuring operator safety and reliable operation.

Q: How is the delivery and dispatch process managed for overseas orders?

A: The machine is dispatched from key FOB ports in India using secure goods transport, with deliveries scheduled to reach main export and domestic markets efficiently and safely.
