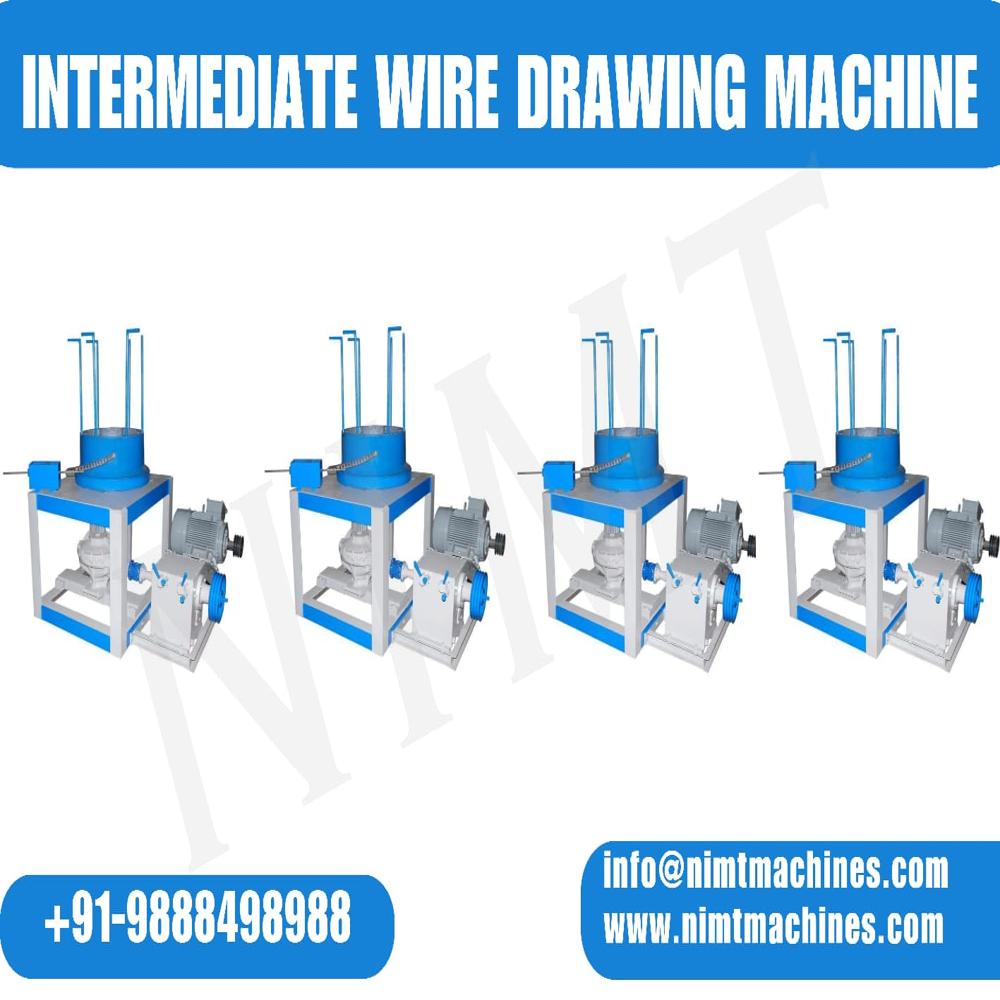

Intermediate Wire Drawing Machine

Name: Intermediate Wire Drawing Machine
Brand: NORTH INDIA MACHINE TOOLS
Price: 190000.0 INR
Availability: InStock

Price 190000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Intermediate Wire Drawing Machine Specification

Function
Continuous Drawing and Size Reduction of Wire

Production Speed
up to 15 m/s

Max De-coiler Weight
1 ton - 2 tons

Inlet Diameter
2.5 mm to 6.5 mm

Application
Wire Drawing Industry, Cable Manufacturing, Wire Processing

Power
7.5 kW to 30 kW (varies by model)

Drawing Material
Mild Steel, High Carbon Steel, Copper, Aluminum

Voltage
380V/415V, 3 Phase, 50 Hz

Drawing Passage
5 to 10 dies

Manufacturing Year
2024

Production Capacity
250 kg/h - 1200 kg/h (depending on configuration)

Product Type
Intermediate Wire Drawing Machine

Condition
New

Wire Material
Steel, Copper, Aluminum

Noise Level
80 dB

Weight of Machine
2.5 tons - 5 tons

Cooling System
Water-Cooled or Air-Cooled

Transmission Type
Gear or Belt Drive

Finish
Powder Coated / Painted

Lubrication System
Auto or Manual Lubrication

Dimension
Approx. 3500 mm x 1700 mm x 1500 mm (varies with model)

Control System
PLC Based Automatic Control Panel

Capstan Type
Horizontal / Vertical

Drum Diameter
350 mm - 600 mm

Safety Features
Emergency Stop, Protective Covers

Intermediate Wire Drawing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Intermediate Wire Drawing Machine

We are successfully meeting the diverse requirements of our clients by offering the best quality range of Wire Drawing Machines. These machines are manufactured using high-grade raw materials and advanced technology under the supervision of skilled professionals to ensure excellent performance, durability, and efficiency. Our Wire Drawing Machines are widely appreciated for their robust construction, smooth operation, low maintenance, and long service life. Available in various specifications, they can be customized to meet the specific needs of our clients, ensuring reliable and consistent results across different industrial applications.

Advanced Control and High Efficiency

Featuring a PLC-based automatic control panel, this wire drawing machine provides exceptional process control and operational efficiency. Available with both auto and manual lubrication systems, the machine minimizes downtime and ensures smooth, continuous operation. Production speeds reach up to 15 meters per second with a drawing passage of 5 to 10 dies, optimizing output quality and consistency.

Customizable and Robust Construction

Built to handle demanding industrial environments, the machine accommodates various wire materials and diameters (2.5 mm to 6.5 mm inlet), and its capstan design is available in both horizontal and vertical types. The robust frame, powder-coated or painted, ensures corrosion resistance, while dimensions and weight can be customized to your production space and needs.

Safety and User-Friendly Features

Operator safety is a core priority, with features like emergency stops and protective covers installed as standard. The noise level is restricted to 80 dB for improved working conditions. Both water and air-cooling systems are supported, ensuring optimal thermal regulation during continuous operations.

FAQ's of Intermediate Wire Drawing Machine:

Q: How does the PLC-based automatic control panel enhance operations in this wire drawing machine?

A: The PLC-based automatic control panel streamlines and automates the wire drawing process, providing precise control over speed, lubrication, and other crucial parameters, thereby enhancing productivity, reducing manual intervention, and improving product consistency.

Q: What materials can be processed with this intermediate wire drawing machine?

A: The machine is suitable for drawing a range of materials including mild steel, high carbon steel, copper, and aluminum, making it versatile for wire drawing, cable manufacturing, and wire processing industries.

Q: When is auto lubrication preferable over manual lubrication in wire drawing processes?

A: Auto lubrication is preferable for continuous or high-volume operations, as it provides consistent lubrication, minimizes downtime, and extends component lifespan compared to manual lubrication, which may suit occasional or less demanding use.

Q: Where is this machine commonly installed and used?

A: This wire drawing machine is typically installed in wire drawing plants, cable manufacturing units, and wire processing facilities requiring high-capacity, continuous operation for quality wire production.

Q: What benefits do the safety features offer to operators during machine operation?

A: The emergency stop system and protective covers significantly reduce accident risk, enabling a safer operating environment and quick response during unforeseen events or maintenance activities.

Q: How does the cooling system (water or air) support the machine's performance?

A: The integrated cooling system, available in water-cooled or air-cooled options, helps regulate temperature during prolonged operation, preventing overheating and maintaining wire quality and equipment durability.

Q: What is the typical process flow for using this wire drawing machine?

A: Wire with an inlet diameter of 2.5-6.5 mm is fed into the de-coiler, passes through 5 to 10 dies for continuous reduction, is cooled and lubricated as needed, and exits as a drawn wire of reduced diameter, suitable for further industrial applications.
