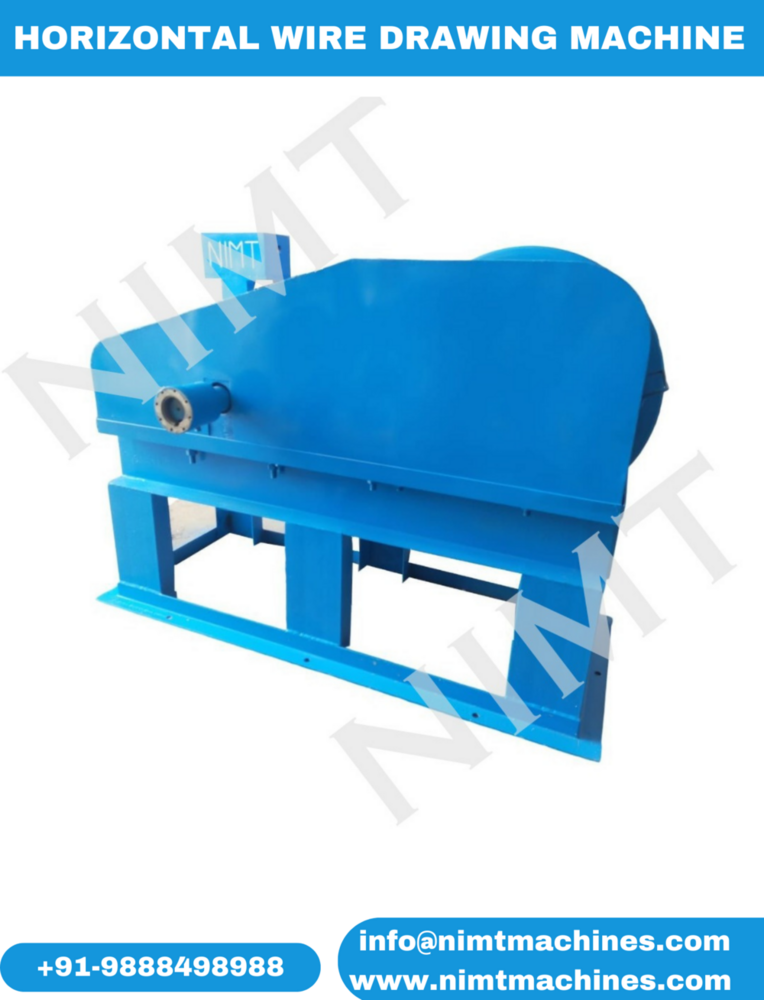

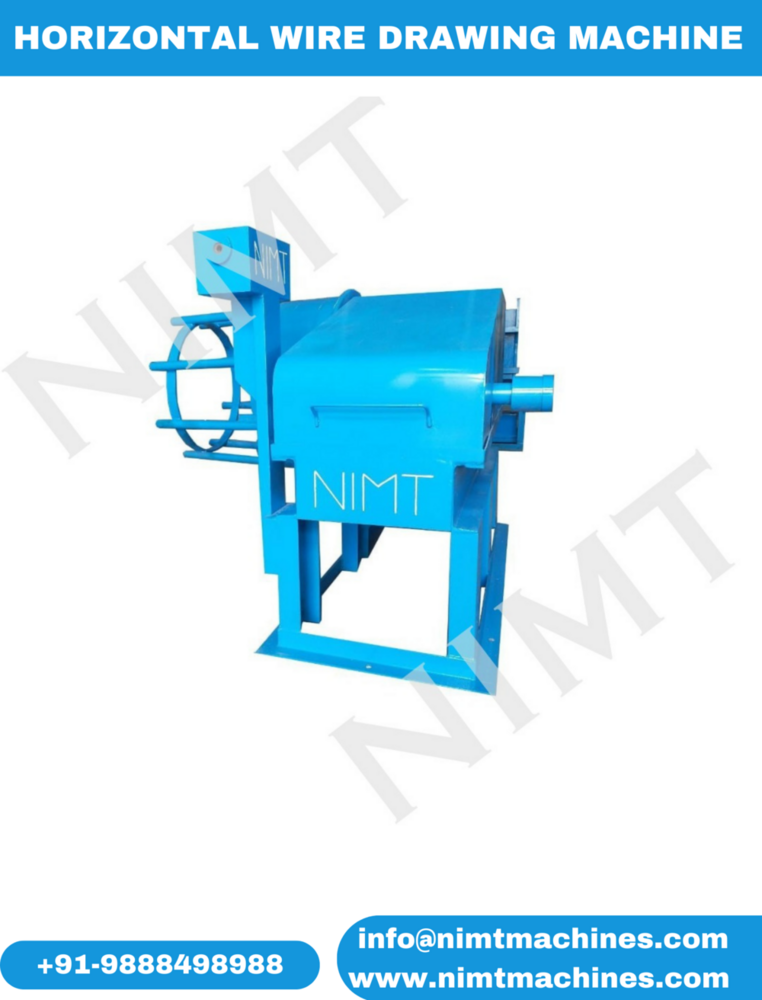

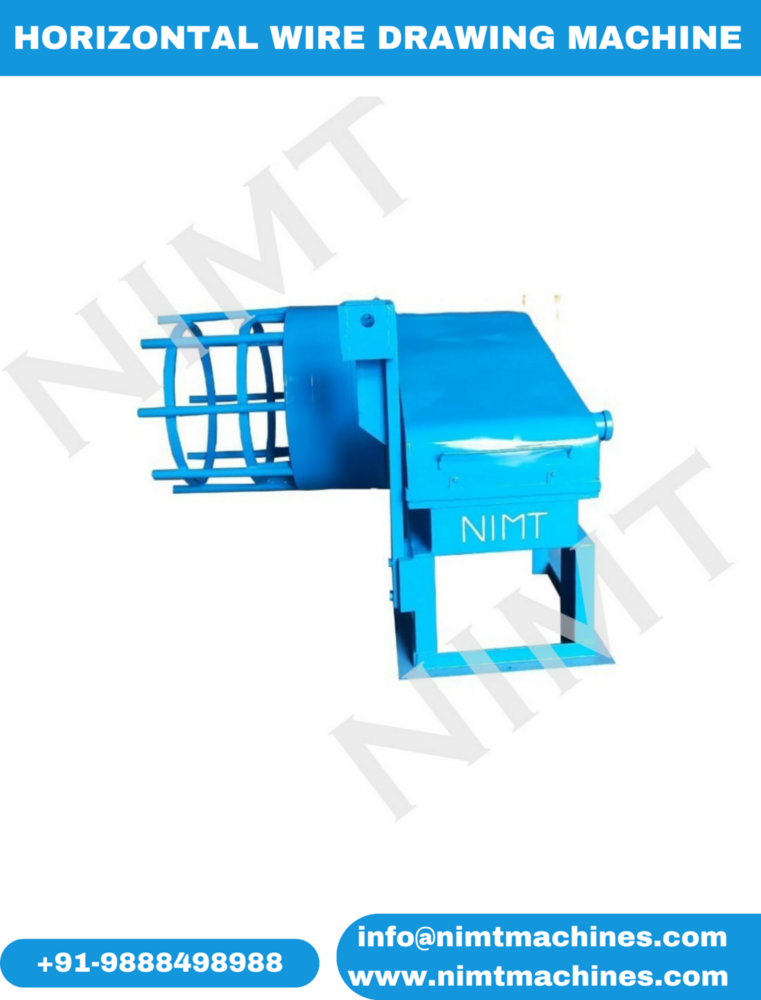

Horizontal Wire Drawing Plant

Name: Horizontal Wire Drawing Plant
Brand: NORTH INDIA MACHINE TOOLS
Price: 320000 INR
Availability: InStock

Price 320000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Horizontal Wire Drawing Plant Specification

Product Type
Horizontal Wire Drawing Plant

Manufacturing Year
2024 Years

Production Capacity
Up to 2 Tons/Shift Ton

Production Speed
Up to 15 m/min Pieces/Minute

Inlet Diameter
6 mm Millimeter (mm)

Function
Semi-Automatic

Application
Industrial

Drawing Material
Mild Steel, Stainless Steel, Copper

Wire Material
MS, SS, Copper, Aluminium

Max De-coiler Weight
1500 kg

Power
35 kW Watt (w)

Drawing Passage
3-6 Passes

Condition
New

Voltage
220-415 Volt (v)

Frame Material
Heavy Gauge Steel Structure

Lubrication System
Forced Lubrication with Chiller

Die Box Type
Water Cooled

Operating Noise Level
Less than 75 dB

Drum Size
600 mm

Gear Box
Heavy Duty Inline Gear Box

Wire Take-Up Type
Coiler/Bobbin Take-Up

Safety Features
Emergency Stop, Interlocks, Protective Guards

Cooling System
Integrated Water Cooling

Control Panel
PLC-Based Automatic Controls

Drive System
AC Variable Frequency Drive

Tension Control
Automatic Tension Adjustment

Machine Length
Approx. 15 meters

Horizontal Wire Drawing Plant Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Horizontal Wire Drawing Plant

Select the Horizontal Wire Drawing Plant and elevate your manufacturing efficiency with our world-class system. This heroic set-up boasts a towering frame crafted from heavy gauge steel, combined with a highlighted forced lubrication system with chiller for superior die cooling. Operating at less than 75 dB, the PLC-based controls ensure seamless semi-automatic performance and top-tier safety with emergency stops and protective guards. Compatible with MS, SS, copper, and aluminum, this new 2024 model powers up to 2 tons/shift. Get it now from India's leading manufacturer and supplier!

Competitive Advantages and Key Features

Our Horizontal Wire Drawing Plant distinguishes itself through robust construction and industry-leading connectivity. Automatic tension adjustment, AC variable frequency drive, and efficient forced lubrication with integrated water cooling guarantee longevity and process stability. Ideal for drawing mild steel, stainless steel, copper, and aluminium wires, it suits a range of industrial applications with coiler or bobbin take-up. The machine's compact design and PLC-based controls deliver precision and safety, making it the top choice for modern wire manufacturing.

Delivery, Supply, and Sample Policy Details

With a streamlined proposal amount and flexible supply capability, your plant's arrival is prompt and secure. Freight is managed to ensure timely deliveries, and our sample policy is tailored for customer convenience-allowing you to assess product quality before full-scale procurement. Every order is handled with care, tracking each shipment to guarantee on-time arrival at your facility, supported by reliable supply ability to meet small or large order requirements throughout India and beyond.

FAQ's of Horizontal Wire Drawing Plant:

Q: How does the forced lubrication system with chiller benefit wire drawing operations?

A: The forced lubrication system with chiller delivers consistent cooling and lubrication to the die box, enabling prolonged die life and smooth wire surface. This reduces wear, minimizes downtime, and enhances overall drawing efficiency.

Q: What materials can be processed with this Horizontal Wire Drawing Plant?

A: This machine is designed to process mild steel, stainless steel, copper, and aluminium wires with inlet diameters up to 6 mm, offering versatility for various industrial wire production needs.

Q: When can I expect the delivery after placing an order?

A: Delivery timelines depend on the proposal amount, current supply capacity, and freight arrangements. Generally, you'll receive a detailed delivery schedule upon order confirmation, with our team ensuring prompt and reliable arrival.

Q: Where is the Horizontal Wire Drawing Plant manufactured and supplied from?

A: This advanced wire drawing plant is manufactured and supplied from India by a reputed industry leader with a strong track record in wire machinery production and export.

Q: What are the safety features included in this wire drawing machine?

A: Safety is prioritized with features such as emergency stop, interlocks, and protective guards, ensuring safe operation for the user and the surrounding work environment during industrial use.

Q: How does the automatic tension adjustment system work?

A: The automatic tension control system constantly monitors and adjusts tension throughout the drawing process, minimizing wire breakage and optimizing production quality without manual intervention.
