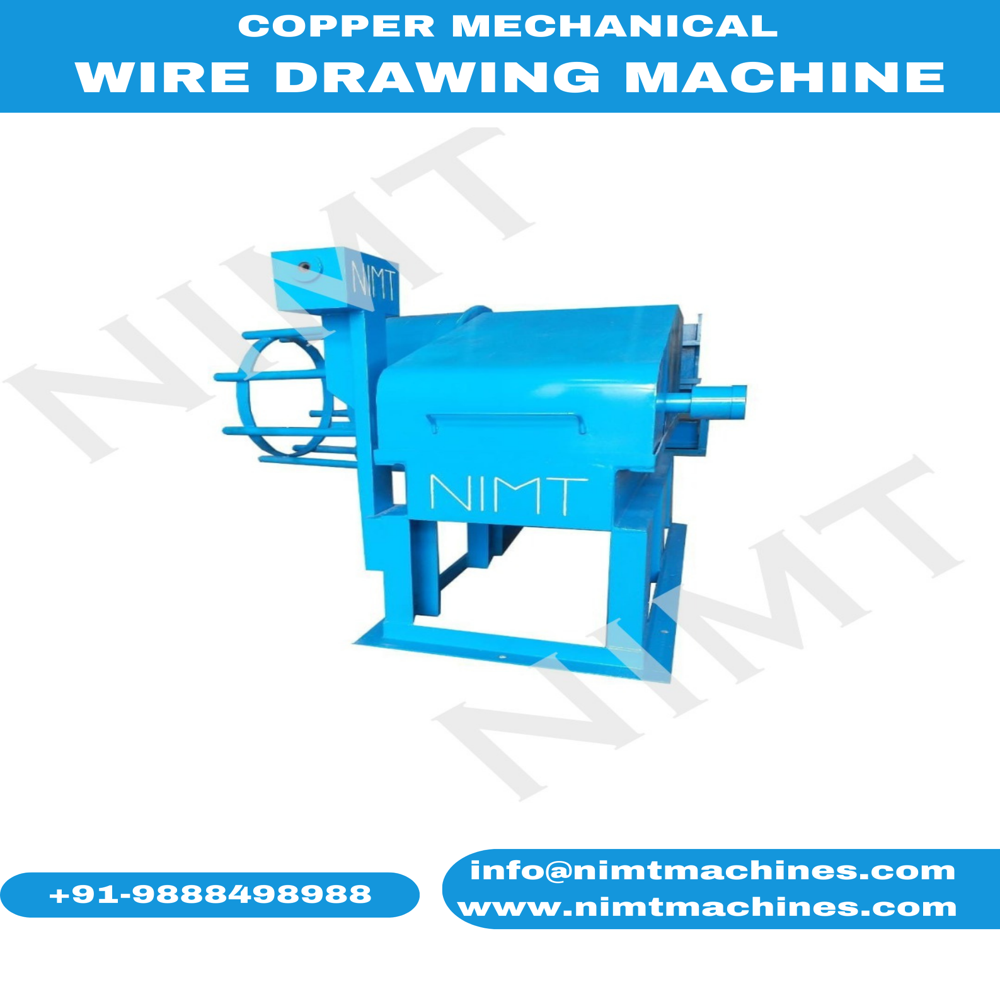

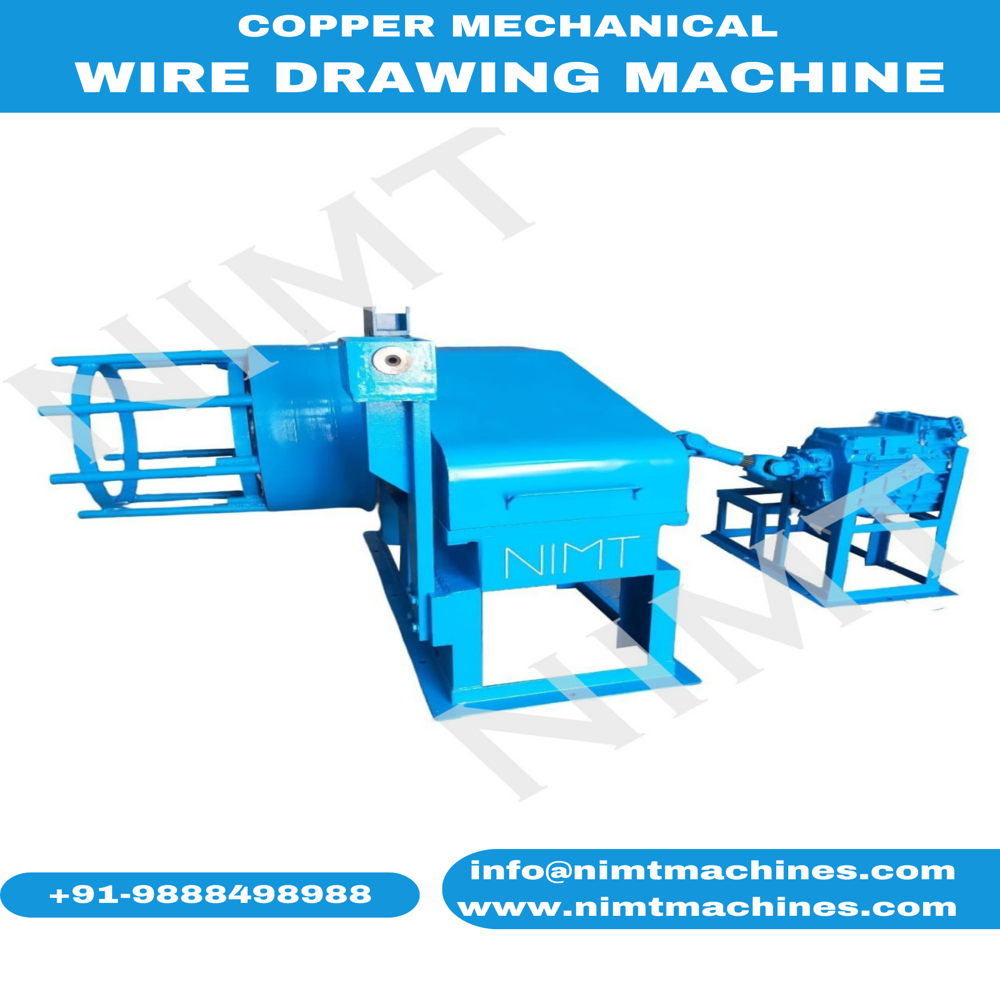

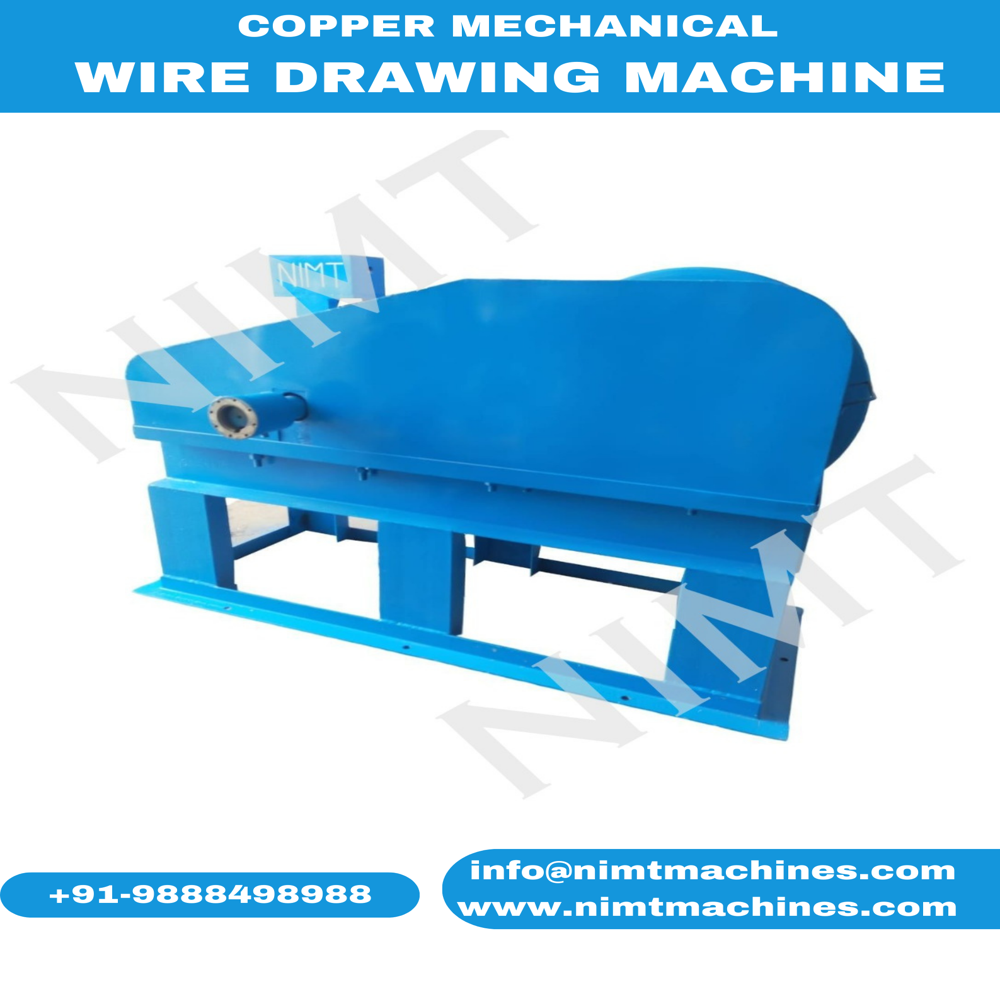

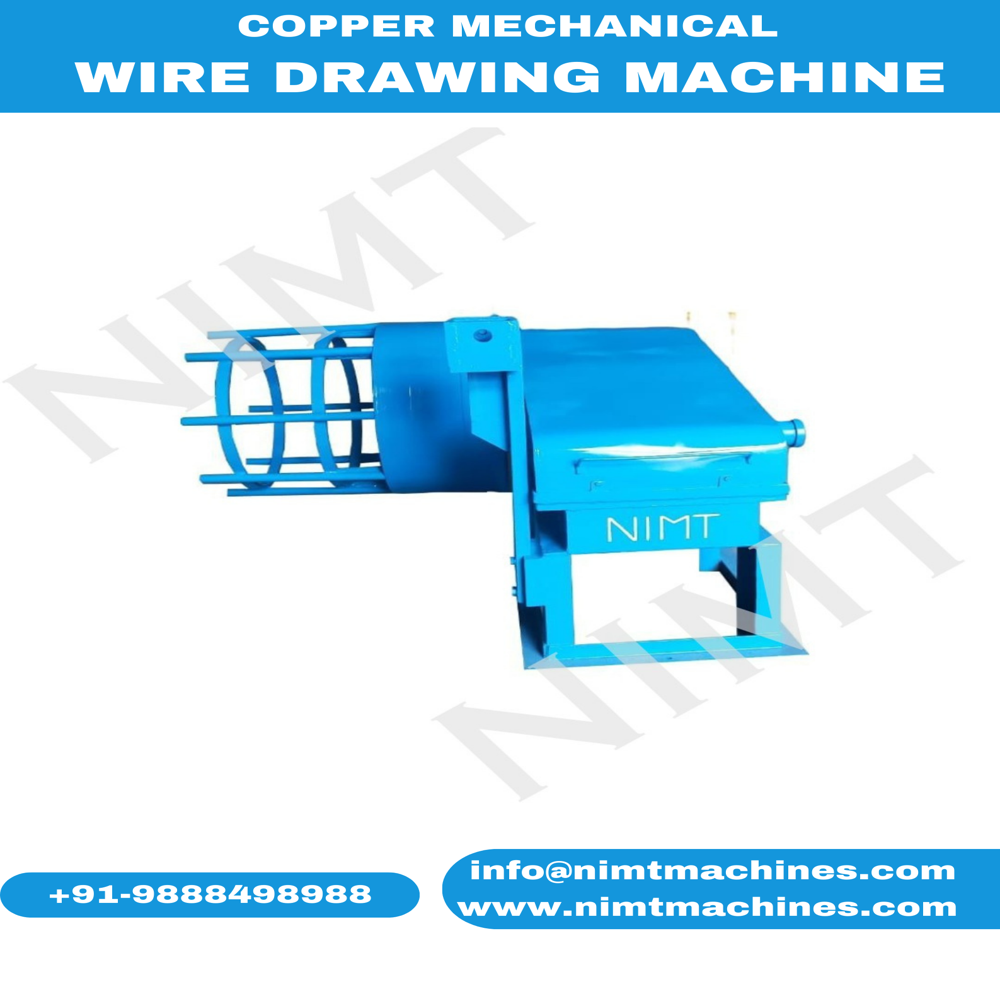

Send InquiryCopper Mechanical Wire Drawing Machine
Price 32000.0 INR/ Unit
MOQ : 1 Unit
Copper Mechanical Wire Drawing Machine Specification
- Drawing Material
- Copper
- Condition
- New
- Manufacturing Year
- 2024
- Inlet Diameter
- 8 mm - 10 mm
- Application
- Electrical wire manufacturing, cable industry, conductor making
- Voltage
- 380V/415V, 3 Phase, 50Hz
- Drawing Passage
- 7-13 dies/passages
- Max De-coiler Weight
- 1500 kg
- Function
- Mechanical wire drawing, diameter reduction
- Production Speed
- 400 m/min - 1000 m/min
- Power
- 7.5 kW - 30 kW (depending on model)
- Wire Material
- Pure Copper or Copper Alloy
- Production Capacity
- Up to 2.0 Ton/day (Depending on material and settings)
- Product Type
- Wire Drawing Machine
- Weight of Machine
- Approx. 3500 kg (varies by model)
- Enclosure
- Safety Shielded with Powder Coated Panels
- Overall Dimensions
- 4200 mm x 1800 mm x 1600 mm
- Number of Drawing Dies
- Adjustable, as per requirement
- Control System
- PLC/Manual Switch Panel
- Lubrication System
- Automatic/Jewelled lubrication system
- Noise Level
- Below 80 dB
- Cooling System
- Water-cooling for dies and wire
- Type of Drive
- Gearbox/AC Motor Driven
- Drum Material
- Alloy Steel with Nitride Hardening
Copper Mechanical Wire Drawing Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 10 Units Per Month
- Delivery Time
- 10 Days
- Main Domestic Market
- All India
About Copper Mechanical Wire Drawing Machine
Experience the sterling performance of our Copper Mechanical Wire Drawing Machine, highly recommended and trusted by elite manufacturers in the cable industry. Designed for astounding productivity, this enlightened system is engineered with up to 13 adjustable drawing dies and a robust alloy steel drum fortified through nitride hardening. Featuring advanced water-cooling, an automatic jewellery-grade lubrication mechanism, and PLC/manual controls within a safety shielded, powder-coated enclosure, this machine offers optimal efficiency while keeping noise below 80 dB. Purchase this sophisticated solution for exceptional wire quality-buy with confidence and elevate your manufacturing processes today!
Applications, Uses, and Directions: Enhanced Performance Across Industries
This Copper Mechanical Wire Drawing Machine finds principal application in the electrical wire manufacturing and cable industries, perfectly suited for conductor making and copper wire diameter reduction. Designed for processing pure copper or copper alloy input, users simply load copper wire into the de-coiler and select the desired number of draws. Mostly operated in an industrial workflow, its straightforward interface and automated controls ensure seamless daily operation and consistent, high-grade wire output.
Supply Ability, Certification, and Market Presence: Ready for Immediate Dispatch
With stock ready for prompt delivery, our supply ability ensures fast order fulfillment across the main domestic market zones of India. Manufactured in 2024 to the highest standards, every machine comes certified for dependability and elite safety. List prices reflect exceptional value for such advanced technology. Transportation is streamlined, supporting efficient relocation and setup-making this mechanical wire drawing machine a prime choice for forward-thinking operations.
Applications, Uses, and Directions: Enhanced Performance Across Industries
This Copper Mechanical Wire Drawing Machine finds principal application in the electrical wire manufacturing and cable industries, perfectly suited for conductor making and copper wire diameter reduction. Designed for processing pure copper or copper alloy input, users simply load copper wire into the de-coiler and select the desired number of draws. Mostly operated in an industrial workflow, its straightforward interface and automated controls ensure seamless daily operation and consistent, high-grade wire output.
Supply Ability, Certification, and Market Presence: Ready for Immediate Dispatch
With stock ready for prompt delivery, our supply ability ensures fast order fulfillment across the main domestic market zones of India. Manufactured in 2024 to the highest standards, every machine comes certified for dependability and elite safety. List prices reflect exceptional value for such advanced technology. Transportation is streamlined, supporting efficient relocation and setup-making this mechanical wire drawing machine a prime choice for forward-thinking operations.
FAQ's of Copper Mechanical Wire Drawing Machine:
Q: How does the cooling and lubrication system work in this machine?
A: The machine uses a water-cooling system for the dies and wire, maintaining optimal temperatures during operations. Additionally, it features an automatic or jewelled lubrication system, ensuring smooth mechanical processes and reduced wear on components.Q: What materials can be processed with this wire drawing machine?
A: This equipment is specifically designed for pure copper or copper alloy wires, making it ideal for the electrical wire manufacturing and cable production sectors.Q: When is the machine considered ready for operation after delivery?
A: The machine arrives in a ready-to-install condition, requiring only basic setup, connection to power and water supplies, and adjustment of operating settings before commencing production.Q: What benefits does the safety shielded enclosure provide?
A: The safety shielded and powder-coated enclosure helps protect operators from moving parts, reduces noise to below 80 dB, and ensures a cleaner, more controlled work environment.Q: Where is this machine primarily supplied and supported?
A: This wire drawing machine is supplied primarily across India, with comprehensive support and logistics to ensure quick, reliable delivery and installation throughout the main domestic market.Q: What is the process for adjusting the number of drawing dies?
A: Operators can select and adjust the number of drawing dies between 7 and 13 according to the required wire thickness, allowing for flexible production and consistent quality.
